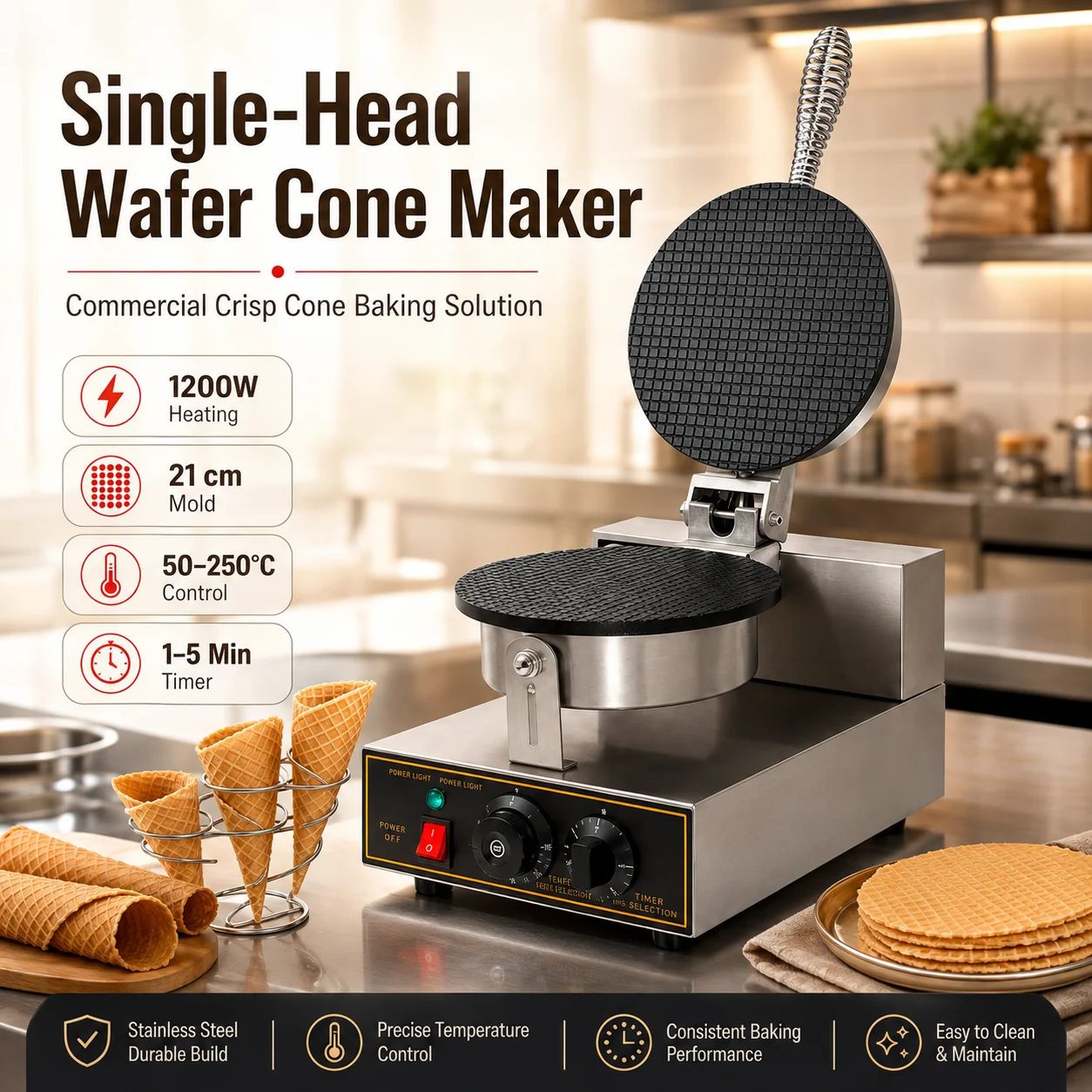

Wafer cone maker is a compact commercial baking machine designed for producing thin, crisp wafer sheets that can be rolled into ice cream cones or served as flat wafers. With 1200W heating power, a 21 cm round mold, 50–250°C adjustable temperature control and a 1–5 minute timer, this single-head machine is suitable for ice cream shops, dessert stores, cafés, snack counters and other food-service businesses that need flexible small-batch cone production.
Make Fresh, Crispy Wafer Cones Directly in Your Shop
This detailed guide covers specifications, core advantages, structural details, operating steps, cleaning, production tips and purchasing considerations for a commercial single-head wafer cone maker.
1. Wafer Cone Maker Product Overview
Fresh wafer cones can help ice cream and dessert businesses improve product presentation while creating a stronger made-in-store experience. Instead of relying entirely on pre-made cones, operators can bake wafer sheets when needed and shape them while still warm. This makes it possible to adjust cone size, crispness, color and recipe according to the store’s menu.
The machine uses two round textured baking plates. Batter is placed on the lower plate, the upper plate is closed, and the heating system bakes the batter into a thin patterned sheet. After baking, the hot sheet is removed and immediately rolled around a cone-forming tool before it cools and becomes crisp.
The single-head design is especially practical for small and medium food-service businesses because it occupies relatively little countertop space. Temperature and timer controls allow the operator to establish repeatable settings once the batter recipe has been tested.

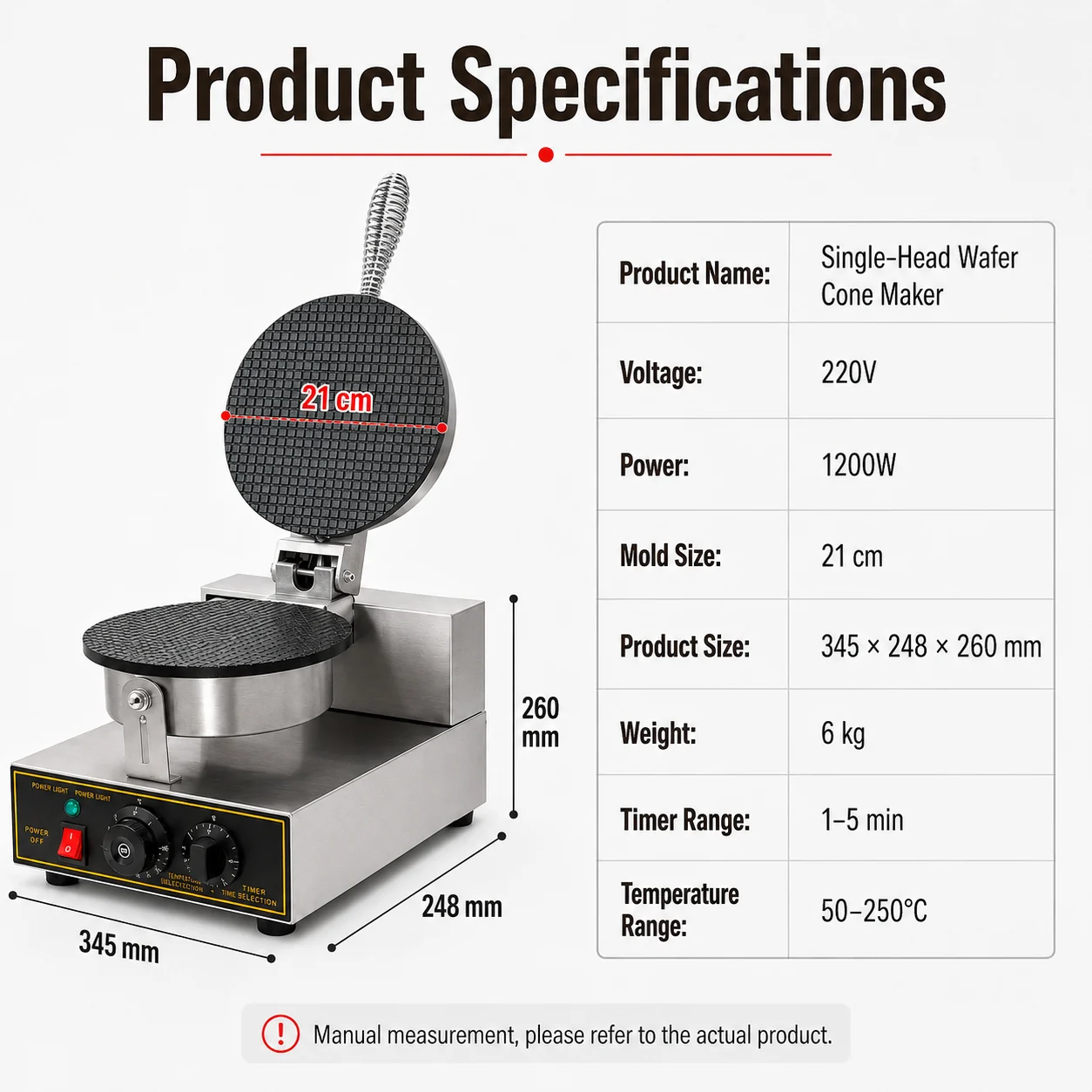

2. Wafer Cone Maker Specifications
Before purchasing a cone machine, buyers should confirm the mold diameter, voltage, heating power, temperature range and available counter space. These specifications determine whether the machine fits the shop’s recipe, electrical system and production area.
| Product Name | Single-Head Wafer Cone Maker |
|---|---|
| Voltage | 220V |
| Power | 1200W |
| Mold Diameter | 21 cm |
| Product Size | 345 × 248 × 260 mm |
| Weight | Approx. 6 kg |
| Timer Range | 1–5 minutes |
| Temperature Range | 50–250°C |
| Heating Method | Electric heating |
| Recommended Use | Ice cream shop, dessert store, café and snack business |
Manual measurements may have slight differences. Confirm the final plug, voltage, plate coating, power cord, packing size and certification requirements before ordering.

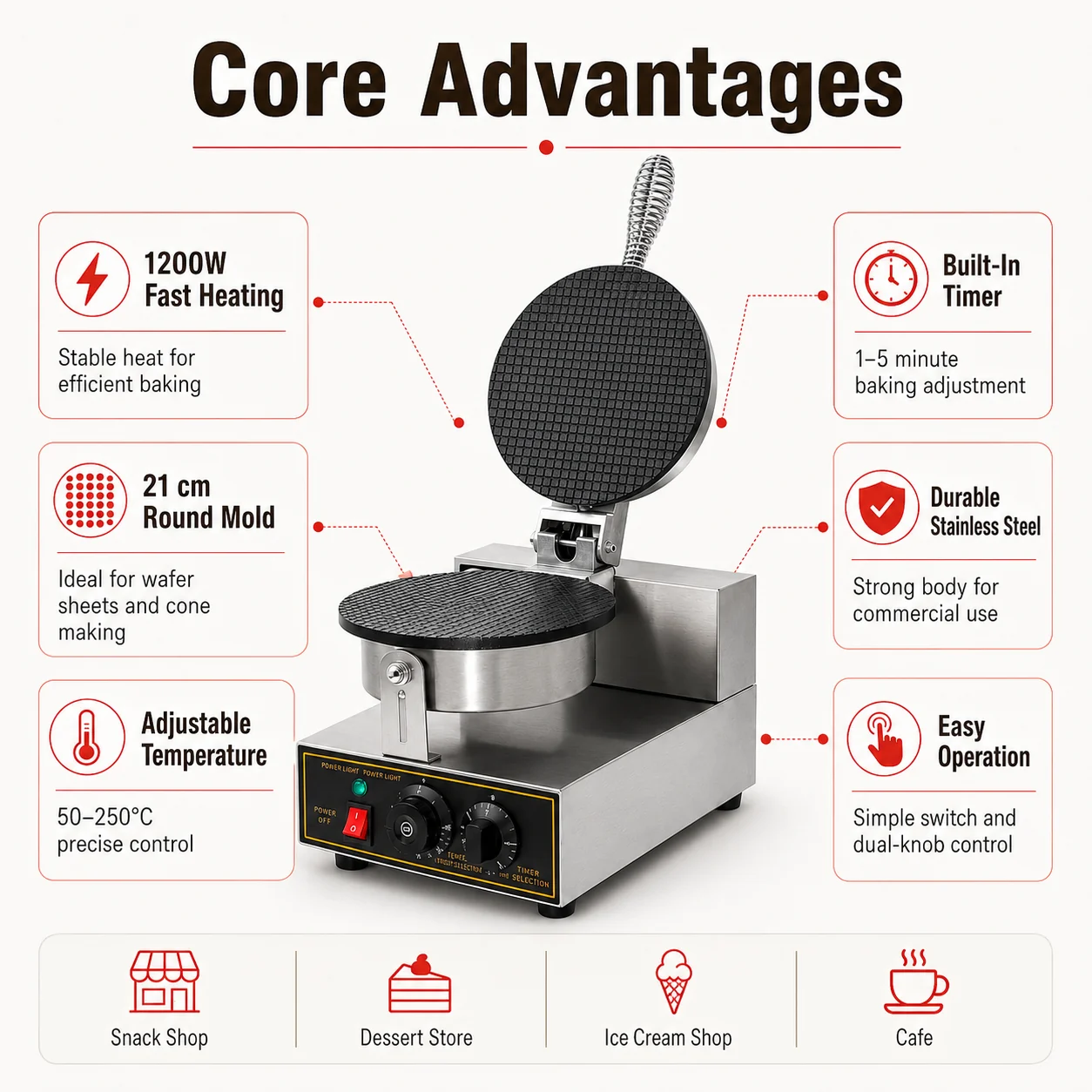

3. Core Advantages for Commercial Cone Production
1200W Heating Power
The heating system provides the energy needed to bring the round plates to baking temperature and recover heat between batches.
21 cm Round Mold
The 21 cm mold produces a practical wafer sheet size that can be shaped into cones or used for other crisp dessert presentations.
50–250°C Temperature Control
Adjustable temperature helps operators fine-tune browning and crispness for different batter formulations.
1–5 Minute Timer
The timer gives staff a repeatable baking reference and makes recipe standardization easier during daily service.
Compact Commercial Body
The 345 × 248 mm footprint fits many dessert and ice cream counters without occupying a large preparation area.
Simple Manual Operation
A power switch and two control knobs make training straightforward for new employees.

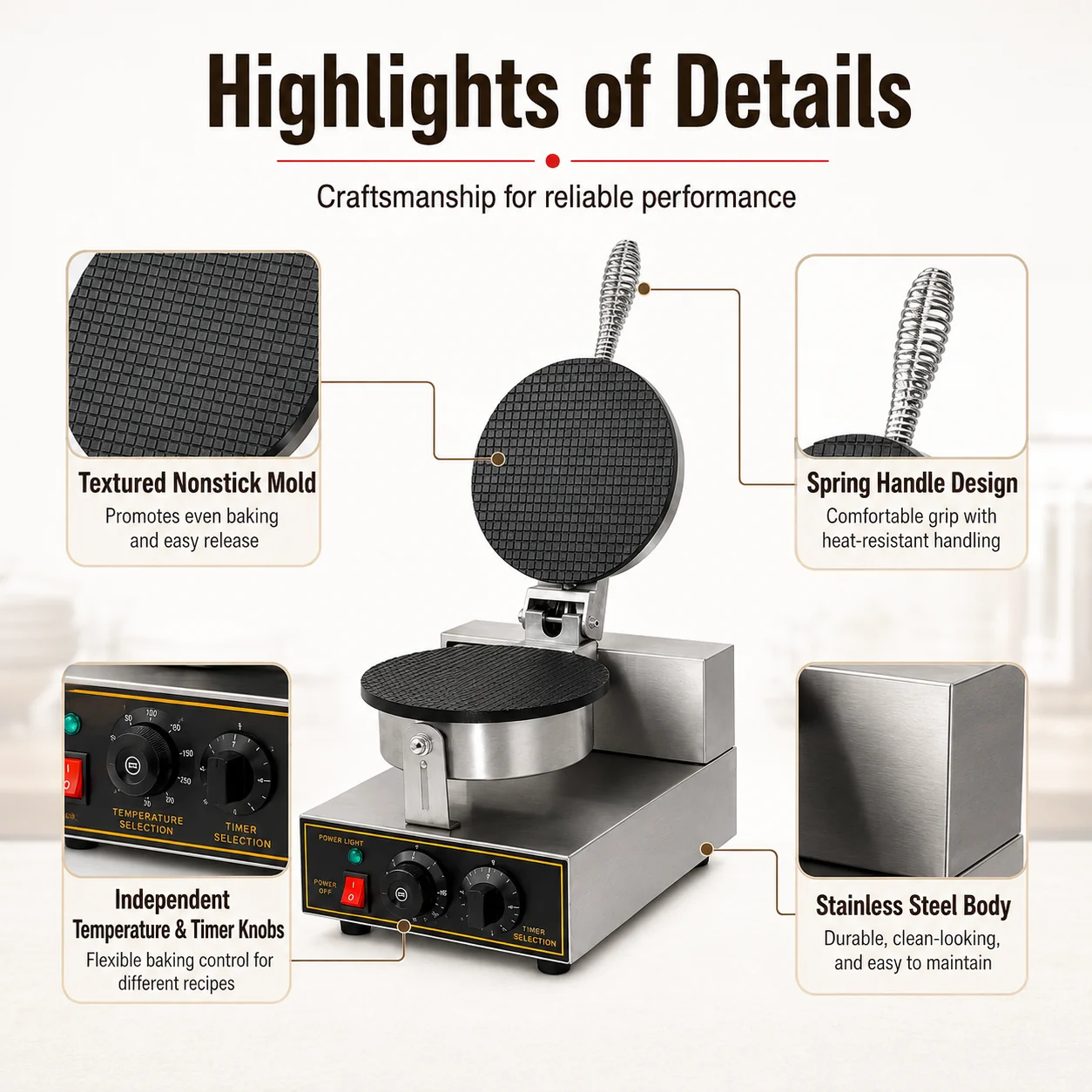

4. Wafer Cone Maker Detail Highlights
Textured Baking Mold
The mold surface creates the familiar crosshatch wafer pattern while distributing the batter into a thin sheet. Proper preheating and controlled batter quantity are important for consistent thickness.
Spring Handle Design
The coiled metal handle keeps the operator’s grip farther from the hot baking area. Heat-resistant gloves are still recommended when handling freshly baked sheets or working near the mold.
Independent Temperature and Timer Knobs
Separate controls allow the operator to adjust heat and baking duration independently. This is useful when changing recipes or compensating for batter temperature and ambient conditions.
Stainless-Steel Exterior
The metal exterior is suitable for commercial food counters and can be wiped clean after service. The electrical control area should always be kept dry.
5. Suitable Application Scenarios
Ice Cream Shops
Fresh cones can be baked in-store and paired with soft serve, gelato or scoop ice cream. The aroma of warm wafers can also become part of the customer experience.
Dessert Stores
The wafer sheet can be shaped into cones, cups or decorative pieces and paired with cream, fruit, chocolate or other dessert components.
Cafés
Coffee shops can use fresh wafer cones for ice cream desserts, plated sweets or seasonal menu items that complement coffee drinks.
Snack Shops and Kiosks
The compact footprint makes the machine practical for small food-service counters, kiosks and street snack businesses with limited preparation space.

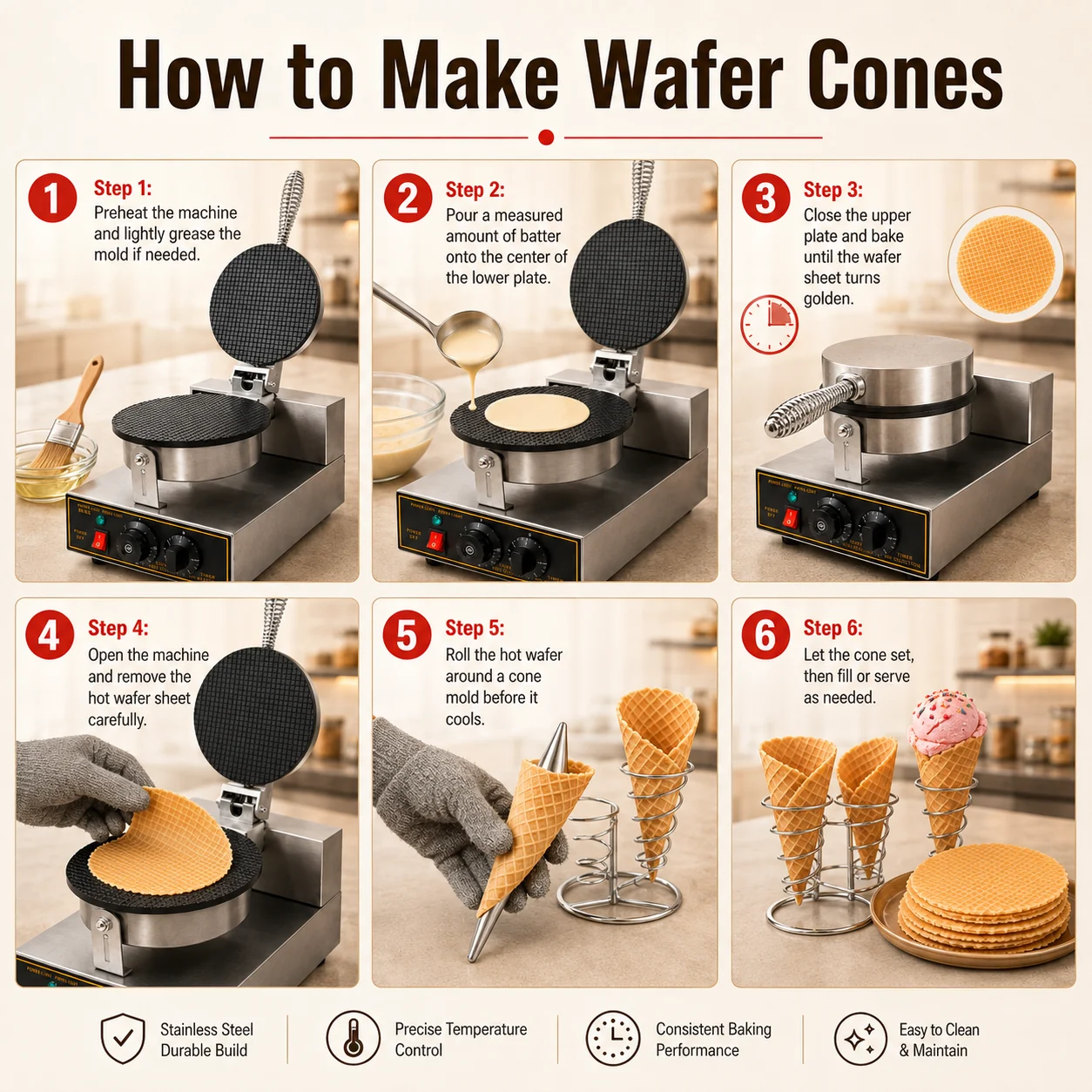

6. How to Use a Wafer Cone Maker
The correct workflow is simple, but the wafer must be shaped quickly because it becomes firm as it cools. Prepare batter, a cone-forming tool, heat-resistant gloves and a safe cooling rack before starting production.
Preheat the Machine
Switch on the machine, set the required temperature and allow both plates to heat fully. Lightly grease the mold if required by the recipe and plate condition.
Measure and Pour the Batter
Pour a consistent quantity of batter near the center of the lower plate. Using the same portion for every batch helps control wafer thickness and cost.
Close the Upper Plate
Close the baking head carefully so the batter spreads across the textured mold. Keep hands away from hot metal surfaces.
Bake until Golden
Use the timer as the standard reference. Adjust time and temperature after testing until the wafer reaches the desired color and crispness.
Remove the Hot Wafer Sheet
Open the machine and lift the wafer carefully with a suitable non-metal utensil. Use heat-resistant gloves because the sheet and mold are hot.
Roll the Cone before It Cools
Immediately wrap the hot wafer around a cone-forming mold. Hold it briefly until the shape sets, then place it on a rack to cool completely.
7. Commercial Production and Workflow Tips
Standardize Batter Weight
Use a measured ladle, cup or dispenser for each wafer. Consistent portions help reduce waste and keep the final cone size more uniform.
Record Your Best Temperature and Time
After recipe testing, record the settings that produce the desired color and crispness. Operators should start with the approved recipe instead of changing settings for every batch.
Shape Immediately
Assign a clear work area for rolling and cooling cones. During busy periods, preparing forming tools and racks in advance can improve output speed.
Store Finished Cones in a Dry Area
Crisp wafers absorb moisture easily. Once completely cool, store them in a clean, dry and suitable food container to help preserve texture.
Offer More Than One Product Format
The same wafer sheet may be used as a cone, flat crisp wafer or decorative dessert element, depending on the recipe and food-safety process used by the store.

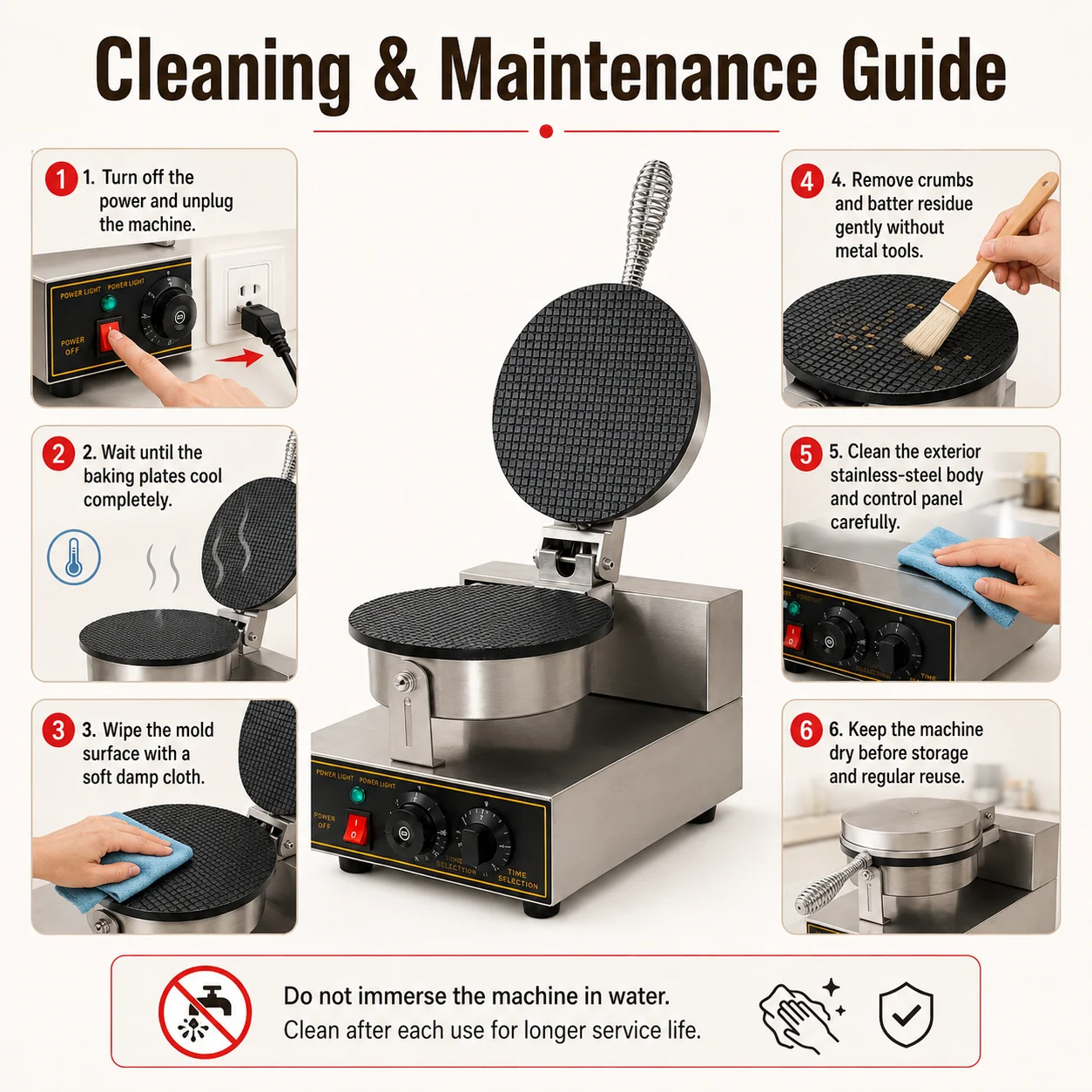

8. Wafer Cone Maker Cleaning and Maintenance
Turn Off and Unplug
Always disconnect the machine from power before cleaning, inspection or maintenance.
Allow the Plates to Cool
Wait until the baking plates reach a safe temperature. Never wipe a very hot plate with a wet cloth.
Remove Crumbs and Batter Residue
Use a soft brush or non-abrasive tool. Avoid metal scrapers that may damage the mold surface.
Wipe the Mold
Use a soft damp cloth after the mold cools. Do not soak the baking assembly.
Clean the Exterior
Wipe the stainless-steel housing and control-panel area carefully, keeping liquid away from electrical components.
Dry before Reuse or Storage
Make sure all surfaces are dry before reconnecting power or storing the machine.
Do not immerse the machine or rinse the complete electrical unit directly with water.
9. What to Check before Buying
- Voltage: confirm that 220V is suitable for the destination market.
- Power: verify the 1200W electrical requirement and available circuit capacity.
- Mold size: confirm that the 21 cm plate suits the desired finished cone size.
- Temperature control: verify the 50–250°C control range.
- Timer: confirm the 1–5 minute timer function and operating method.
- Plate material and coating: confirm the final mold material and surface treatment.
- Handle design: check that the handle is secure and suitable for repeated commercial operation.
- Counter space: allow enough room around the 345 × 248 × 260 mm machine for safe operation.
- Replacement parts: ask about thermostat, timer, switch, heating element and hinge availability.
- Export requirements: confirm plug, packaging and certification requirements before ordering.
Stores with very high cone demand should also consider production capacity. A single-head machine is suitable for flexible small-batch production, while higher-volume businesses may need multiple machines or additional production staff during peak periods.
10. Wafer Cone Maker FAQs
What is the mold diameter?
The shown round mold diameter is 21 cm.
What is the rated power?
The shown rated power is 1200W.
What temperature range can be selected?
The shown adjustable range is 50–250°C.
How long is the timer range?
The shown timer range is 1–5 minutes.
Can the wafer be shaped after baking?
Yes. The sheet should be shaped immediately while it is still hot and flexible, before it cools and becomes crisp.
What businesses can use this machine?
Typical applications include ice cream shops, dessert stores, cafés, snack counters and kiosks.
Where can I see related waffle equipment?
Visit our commercial waffle maker page for related products.
Conclusion: A Flexible Machine for Fresh Wafer Cone Production
This single-head commercial machine combines a 21 cm textured mold, 1200W electric heating, adjustable 50–250°C temperature control and a 1–5 minute timer in a compact countertop body. It gives ice cream and dessert businesses a practical way to produce fresh wafer sheets and shape cones according to their own recipes.
The best results come from consistent batter portions, tested temperature settings, fast cone forming and regular cleaning. For businesses that value fresh preparation and flexible menu presentation, the machine can be a useful addition to the dessert-production area.
Request Product Details and Wholesale Pricing
Contact Foshan Weiqi Electromechanical Equipment Co., Ltd. for product configuration, wholesale pricing, packaging and export inquiries.
Note: Product appearance and specifications may be updated. Confirm the final configuration before ordering.
