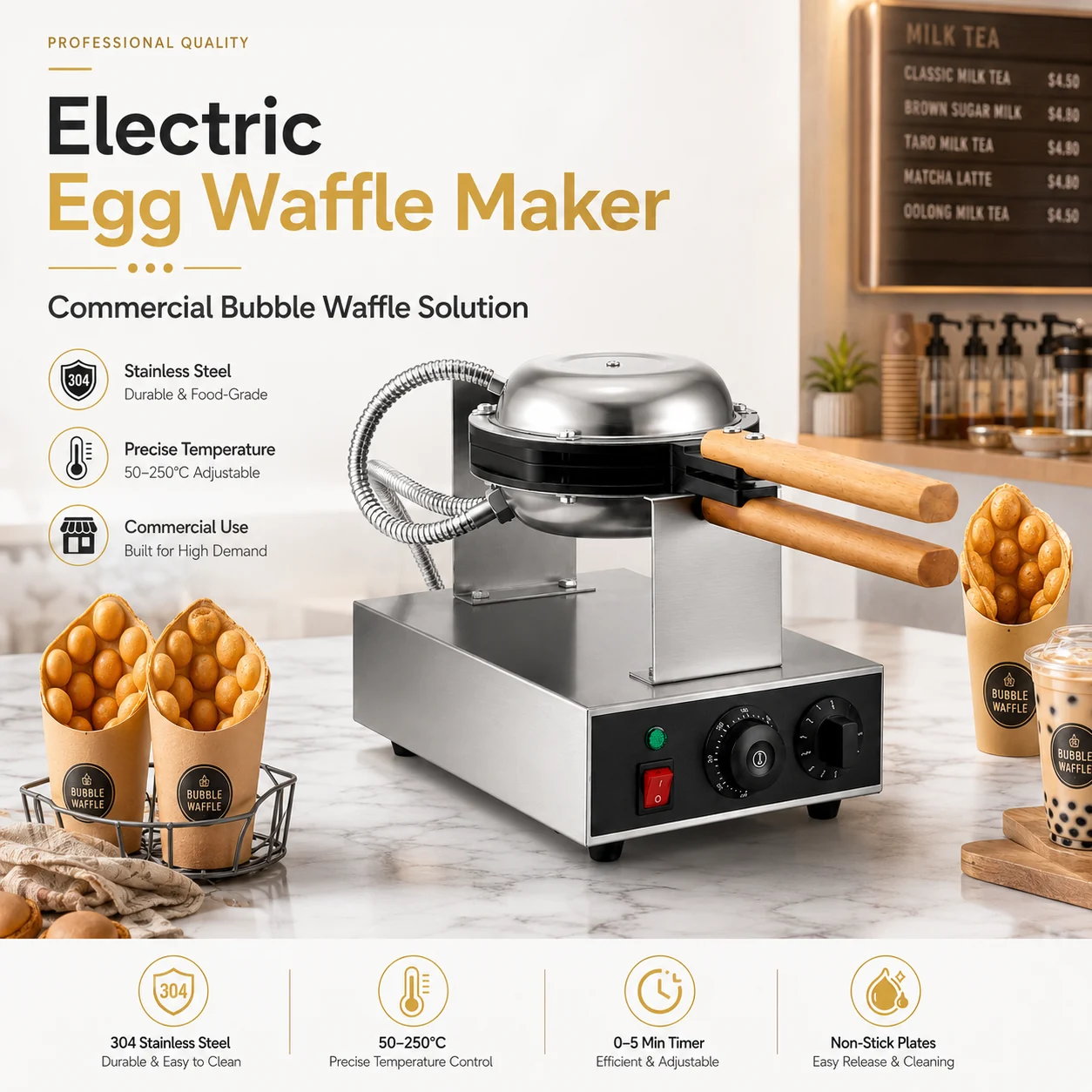

FY-6 egg waffle maker is a commercial electric baking machine designed for bubble waffle, Hong Kong-style egg waffle and dessert preparation in milk tea shops, cafés, dessert stores and snack businesses. With 1415W rated power, a 50–250°C adjustable temperature range, a compact 330 × 220 × 230 mm body and approximately 30 mm bubble cavities, the FY-6 provides a practical countertop solution for businesses that want consistent waffle production and simple daily operation.
Fast, Consistent Bubble Waffles for Beverage and Dessert Shops
This guide explains the FY-6 egg waffle maker specifications, key advantages, structural details, suitable applications, correct operation, cleaning methods and buying considerations for commercial food-service businesses.
1. FY-6 Egg Waffle Maker Overview
Egg waffles, also known as bubble waffles or Hong Kong-style waffles, have become a popular snack in milk tea shops, dessert cafés and street-food businesses. Their distinctive round bubble structure makes them suitable for serving alone or pairing with ice cream, fruit, cream, chocolate, sauces and beverages.
The FY-6 egg waffle maker is designed for commercial countertop use. Its circular baking head uses multiple round cavities to form the characteristic bubble pattern, while the electric heating system provides controlled baking temperatures for repeatable production. Two wooden handles allow the operator to open, close and rotate the baking head during cooking.
Unlike household waffle makers, this model uses a stainless-steel commercial-style base, manual temperature adjustment and a timer control. These features are useful for stores that need to repeat the same recipe throughout the day while adjusting baking conditions for different batters, ambient temperatures and customer preferences.

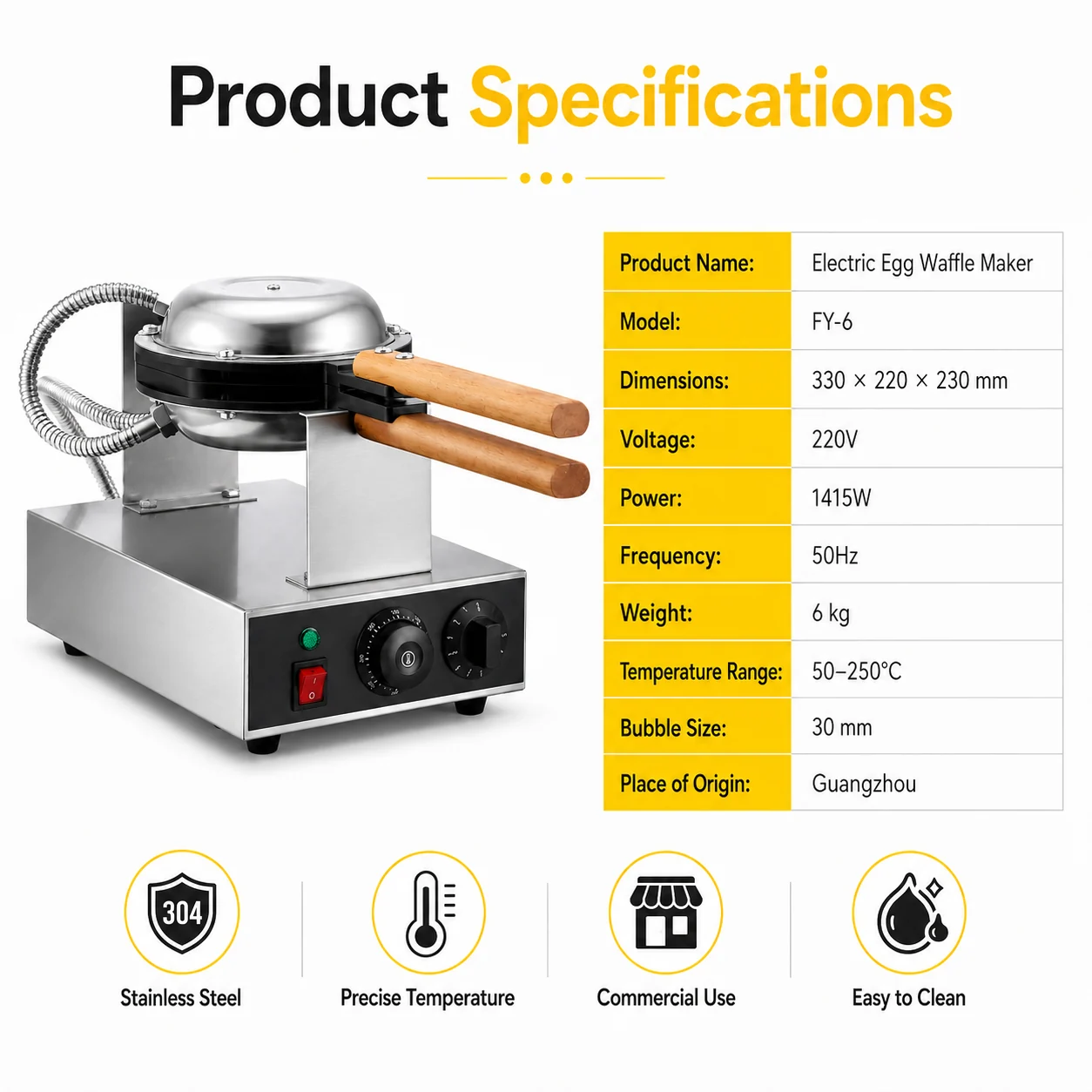

2. FY-6 Egg Waffle Maker Specifications
Understanding power, dimensions, temperature range and plate structure is important before adding a waffle machine to a commercial counter. The FY-6 is compact enough for many beverage and snack counters while providing the adjustable controls needed for routine shop use.
| Product Name | Electric Egg Waffle Maker |
|---|---|
| Model | FY-6 |
| Dimensions | 330 × 220 × 230 mm |
| Voltage | 220V |
| Power | 1415W |
| Frequency | 50Hz |
| Weight | Approx. 6 kg |
| Temperature Range | 50–250°C |
| Bubble Size | Approx. 30 mm |
| Body | Stainless-steel commercial-style housing |
| Operation | Electric heating with manual temperature and timer adjustment |
Product measurements and specifications may have slight differences between production batches. Confirm the final voltage, plug, plate coating, timer range, packaging and certification requirements before placing an order.
3. Core Advantages for Commercial Bubble Waffle Production
1415W Heating Power
The heating system provides the power required for commercial waffle baking and helps the plates recover temperature between batches.
50–250°C Temperature Control
Adjustable temperature allows operators to fine-tune browning, crispness and baking performance for different recipes.
Timer Control
A separate timer helps staff repeat a standard baking cycle and reduces reliance on visual estimation alone.
Rotatable Baking Head
Rotating the closed baking head helps distribute batter and heat more evenly across the bubble cavities.
Wooden Anti-Scald Handles
The extended wooden handles provide a comfortable grip for opening, closing and rotating the hot baking plates.
Commercial Countertop Design
The stainless-steel body and compact footprint suit milk tea shops, cafés, dessert counters and street-food businesses.

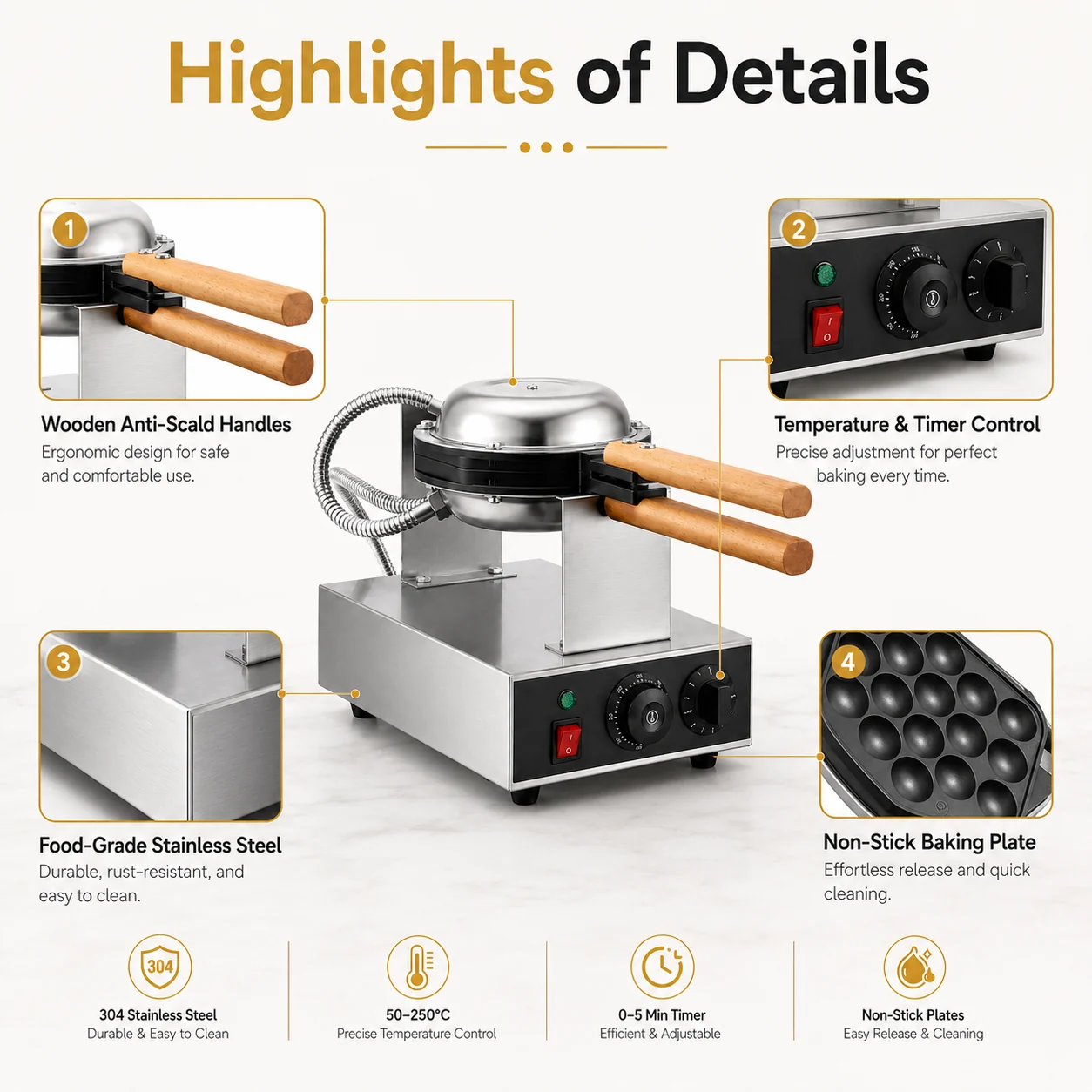

4. FY-6 Egg Waffle Maker Design and Detail Highlights
Wooden Handles
The two long wooden handles help separate the operator’s hands from the hot plate area. They also provide leverage when closing and rotating the baking head.
Temperature and Timer Controls
The front control panel places the power switch, indicator light, temperature dial and timer within easy reach. This simple layout helps staff learn the machine quickly.
Stainless-Steel Housing
The polished metal body is suitable for commercial counters because it is relatively easy to wipe and visually matches many other food-service machines.
Bubble-Shaped Baking Plate
Multiple rounded cavities create the distinctive egg-waffle structure. The approximately 30 mm bubble size produces a recognizable shape for both flat serving and rolled cone presentation.
5. Application Scenarios for Bubble Waffle Businesses
Milk Tea Shops
Bubble waffles pair naturally with milk tea, fruit tea and iced beverages. A shop can sell the waffle as a snack, combo item or premium add-on to increase average order value.
Coffee Shops
Cafés can offer egg waffles with coffee, chocolate, ice cream or fruit toppings. The product can also be positioned as an afternoon snack or dessert menu item.
Dessert Shops
Dessert stores can use the waffle as a base for ice cream, whipped cream, berries, mango, matcha, red bean, chocolate sauce and other toppings.
Street Snack Stalls
The compact countertop machine is suitable for kiosks and snack stalls where customers can see waffles being cooked. The aroma and visible preparation process can help attract attention.
Restaurants and Food Courts
Restaurants and food-court operators can use egg waffles as a shareable dessert or as part of a beverage-and-snack combination.

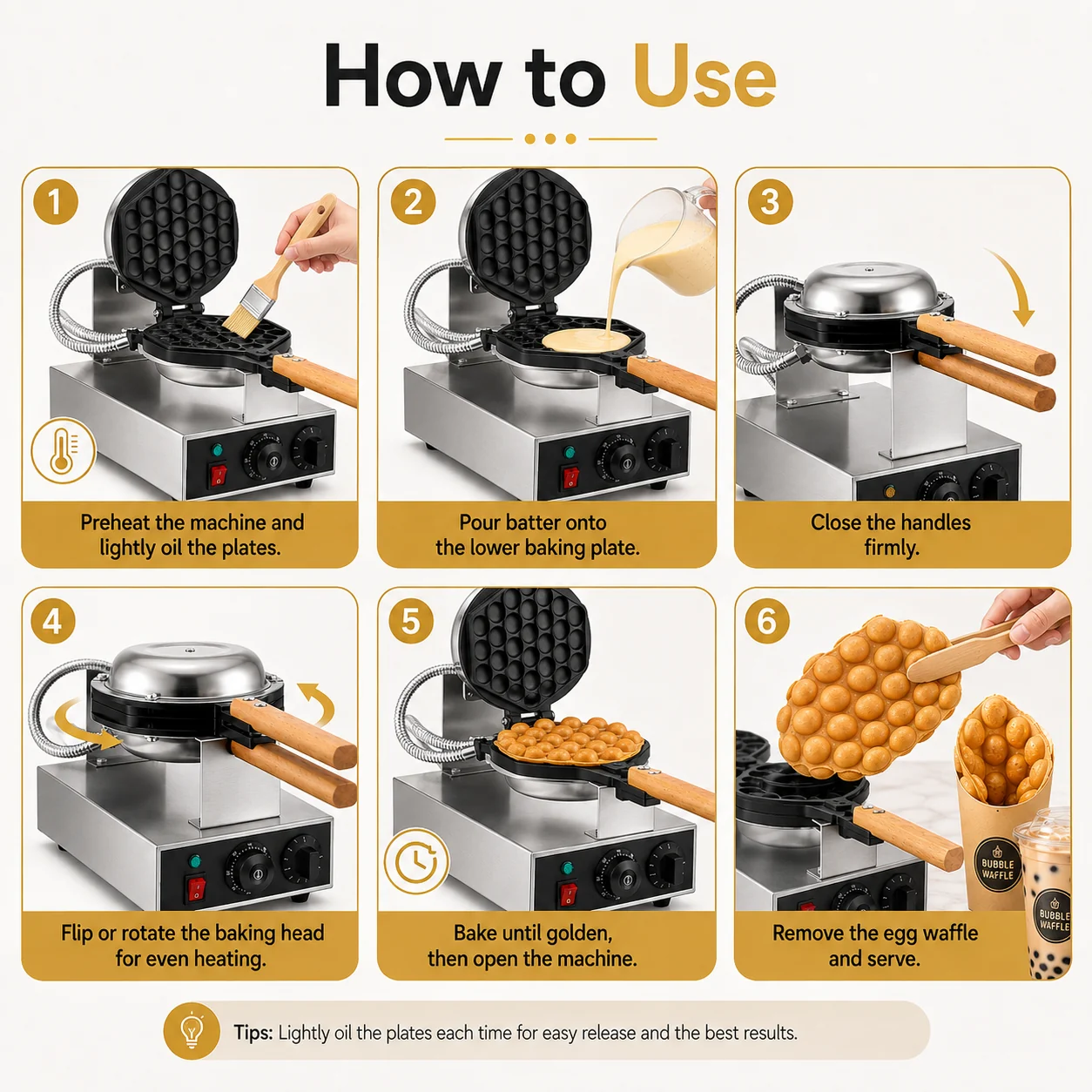

6. How to Use the FY-6 Egg Waffle Maker
The exact temperature and baking time should be adjusted according to the batter recipe, but the general operating sequence is straightforward. Always place the machine on a heat-resistant, stable countertop with adequate ventilation.
Preheat the Machine
Turn on the machine and set the required temperature. Allow the baking plates to preheat fully. Lightly oil the plates when required by the recipe or plate condition.
Pour the Batter
Open the machine and pour a measured amount of batter onto the lower plate. Avoid excessive batter, which may overflow after closing.
Close the Baking Head
Close the upper plate firmly using the wooden handles. Do not place fingers near the hot plate edges.
Rotate for Even Distribution
Rotate or flip the closed baking head according to the machine design. This allows batter to spread through the bubble cavities and promotes more even baking.
Bake to the Desired Color
Use the timer as a repeatable reference. Adjust the cycle according to batter quantity, sugar level, temperature and desired crispness.
Remove and Serve
Open the machine carefully and remove the waffle using a suitable heat-resistant utensil. Serve flat, fold it, or shape it into a cone while warm.
7. Commercial Workflow and Production Tips
Use Pre-Portioned Batter
Portioning batter with a measured ladle or dispensing cup helps reduce overflow and improves consistency between batches.
Record a Standard Temperature and Time
After testing a recipe, record the preferred temperature and timer setting. Staff should use that standard as the starting point instead of adjusting the controls randomly.
Plan for Peak-Hour Demand
If waffle sales are high, prepare batter and toppings before peak periods. Keep the machine preheated while following safe operating procedures and the manufacturer’s recommended duty cycle.
Build High-Value Menu Combinations
Egg waffles can be paired with milk tea, coffee, fruit tea, ice cream, fresh fruit or sauces. Combo menus can turn a simple snack machine into a broader revenue opportunity.

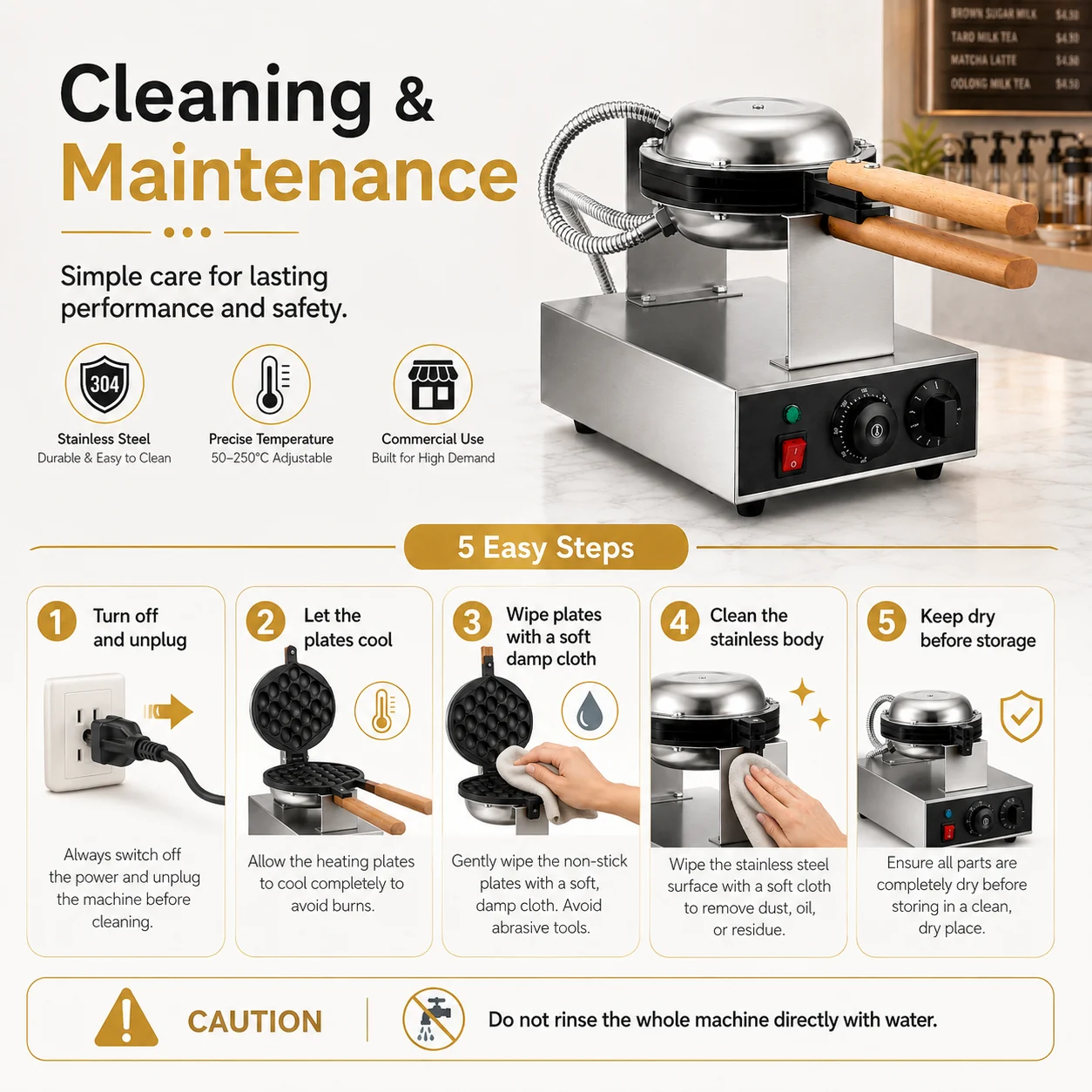

8. FY-6 Egg Waffle Maker Cleaning and Maintenance
Switch Off and Unplug
Disconnect the machine from the power supply before cleaning or inspecting the baking area.
Allow the Plates to Cool
Never clean the baking plates immediately after use. Wait until they reach a safe temperature.
Remove Loose Batter Residue
Use a soft brush, cloth or non-abrasive tool to remove crumbs and cooked batter from the cavities.
Wipe the Baking Surfaces
Use a soft damp cloth. Avoid metal tools and aggressive abrasives that could damage the surface coating.
Clean the Stainless-Steel Body
Wipe the external housing to remove oil, batter and fingerprints. Keep liquids away from the electrical controls.
Dry before Storage or Reuse
Make sure the machine is dry before reconnecting power or storing it in a clean location.
Do not immerse the machine or rinse the complete electrical unit directly with water.
9. What to Check before Buying a Commercial Egg Waffle Machine
- Voltage: confirm that 220V / 50Hz is suitable for the destination market.
- Plug type: request the correct plug or wiring arrangement for the buyer’s country.
- Plate coating: confirm the final baking-plate material and surface treatment.
- Temperature range: make sure the control range suits the intended recipe.
- Timer: confirm the exact timer range and control method.
- Bubble size: approximately 30 mm cavities should match the desired waffle style.
- Machine dimensions: verify available counter space and ventilation clearance.
- Replacement parts: ask about thermostats, switches, heating elements, handles and other service components.
- Packaging: confirm carton size, gross weight and export protection for wholesale orders.
- Compliance: confirm certification requirements for the destination market before purchase.
Buyers should also consider expected order volume. A single-head waffle maker is practical for many small and medium shops, but higher-volume operations may require multiple machines or a higher-capacity production setup.
10. FY-6 Egg Waffle Maker FAQs
What is the power of the FY-6?
The shown rated power is 1415W.
What voltage does the FY-6 use?
The specification shown is 220V / 50Hz. Confirm voltage compatibility before ordering.
What is the adjustable temperature range?
The shown temperature range is 50–250°C.
What size are the waffle bubbles?
The shown bubble cavity size is approximately 30 mm.
Where can this machine be used?
It is suitable for milk tea shops, cafés, dessert stores, snack stalls, restaurants and similar food-service businesses.
Why is the baking head rotated?
Rotating the closed baking head helps distribute batter through the cavities and can support more even baking.
Where can I see related waffle machines?
Browse our commercial waffle maker collection.
Conclusion: A Practical Bubble Waffle Machine for Commercial Shops
The FY-6 electric egg waffle maker combines adjustable temperature control, timer operation, rotatable bubble-waffle plates and a compact stainless-steel body. These features make it a practical option for stores that want to add freshly prepared egg waffles without requiring a large production area.
For milk tea shops, cafés and dessert businesses, the machine can support both standalone snack sales and higher-value drink-and-dessert combinations. Standardizing batter portions, baking temperature and timer settings will help staff produce more consistent results throughout the day.
Request FY-6 Product Details and Wholesale Pricing
Contact Foshan Weiqi Electromechanical Equipment Co., Ltd. for product configuration, wholesale pricing, export packaging and purchasing information.
Note: Product appearance and technical specifications may be updated. Confirm the final configuration before ordering.
