G520N automatic espresso tamper is a commercial coffee tamping machine designed to deliver adjustable 10–30kg pressure, one to three tamping cycles and fast, repeatable puck preparation for cafés, coffee shops and espresso bars.
Improve Espresso Consistency with the G520N Automatic Espresso Tamper
The G520N automatic espresso tamper helps cafés standardize puck preparation with adjustable 10–30kg pressure, 1–3 tamping cycles, a 58mm base and an approximately two-second operating time.

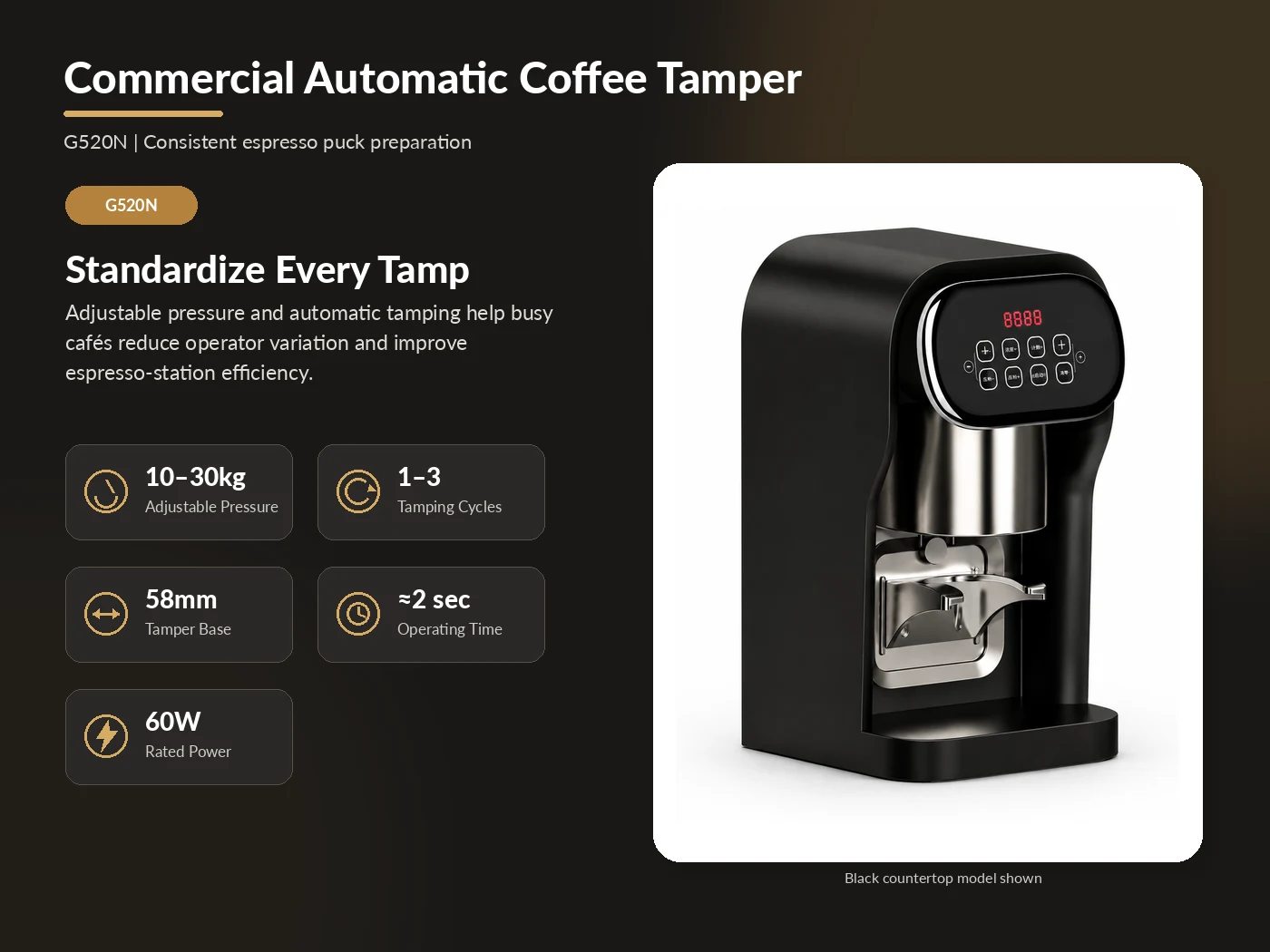

G520N Automatic Espresso Tamper Overview
The G520N automatic espresso tamper is designed to press ground coffee inside a compatible portafilter using controlled pressure. Instead of relying entirely on a barista’s arm strength and tamping angle, the machine completes the tamping movement automatically according to the selected pressure and cycle settings.
This is particularly useful in busy coffee shops where several baristas work on the same espresso station. A recorded machine setting can reduce differences between employees and support a more repeatable puck-preparation process throughout different shifts.

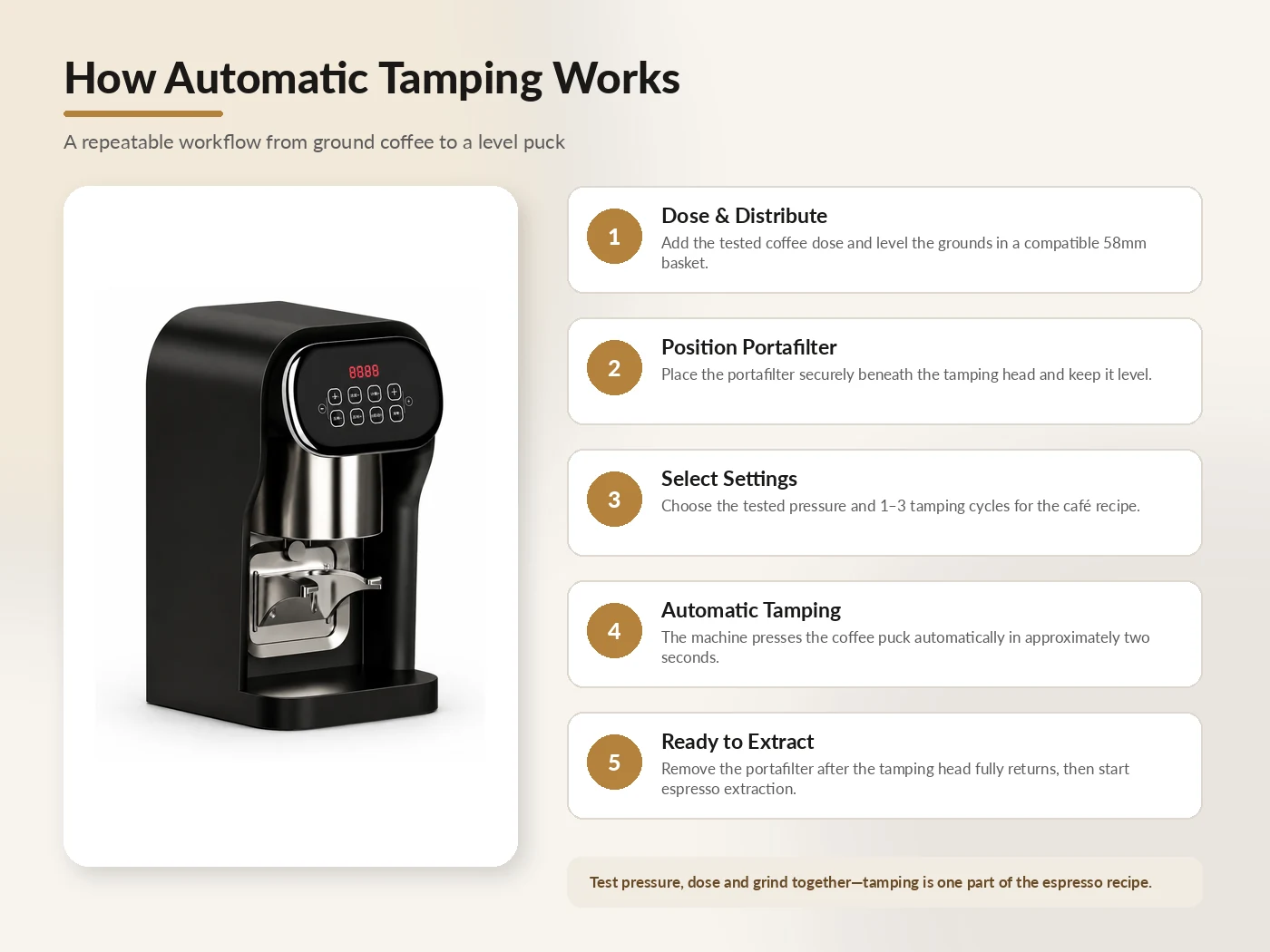

How Does the G520N Automatic Espresso Tamper Work?
The operator first doses and distributes ground coffee inside a compatible 58mm portafilter basket. After the portafilter is positioned beneath the tamping head, the machine applies the selected pressure and completes the programmed number of tamping cycles.
The full tamping process takes approximately two seconds. When the tamping head has returned completely to its original position, the portafilter can be removed and placed into the espresso machine for extraction.

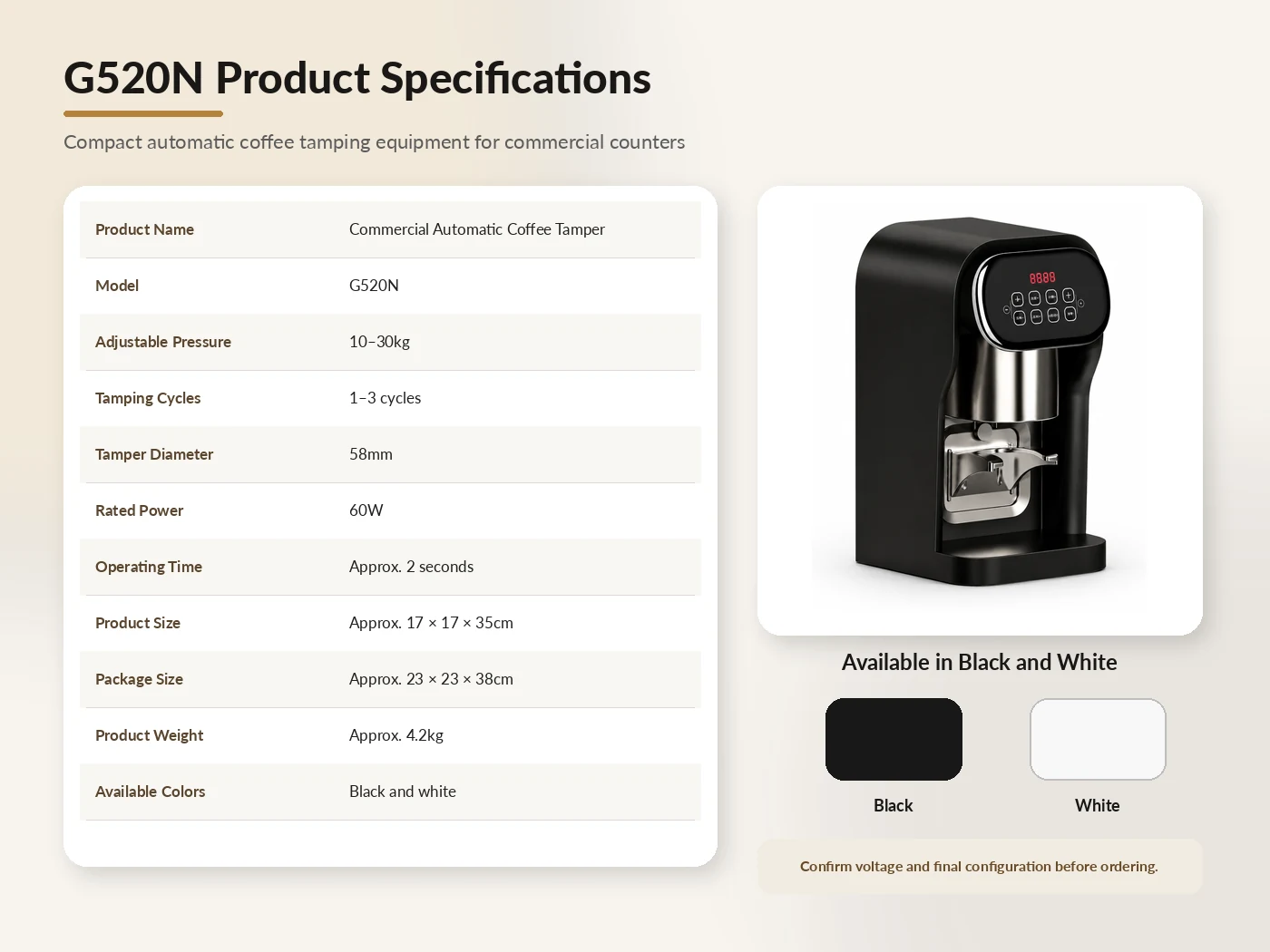

G520N Automatic Espresso Tamper Specifications
| Product Name | Commercial Automatic Coffee Tamper |
|---|---|
| Model | G520N |
| Adjustable Pressure | 10–30kg |
| Tamping Cycles | 1–3 cycles |
| Tamper Diameter | 58mm |
| Rated Power | 60W |
| Operating Time | Approximately 2 seconds |
| Product Dimensions | Approximately 17 × 17 × 35cm |
| Package Dimensions | Approximately 23 × 23 × 38cm |
| Product Weight | Approximately 4.2kg |
| Available Colors | Black and white |
Voltage, plug type and final product configuration should be confirmed before ordering. For current specifications and wholesale details, visit the G520N automatic coffee tamper product page.

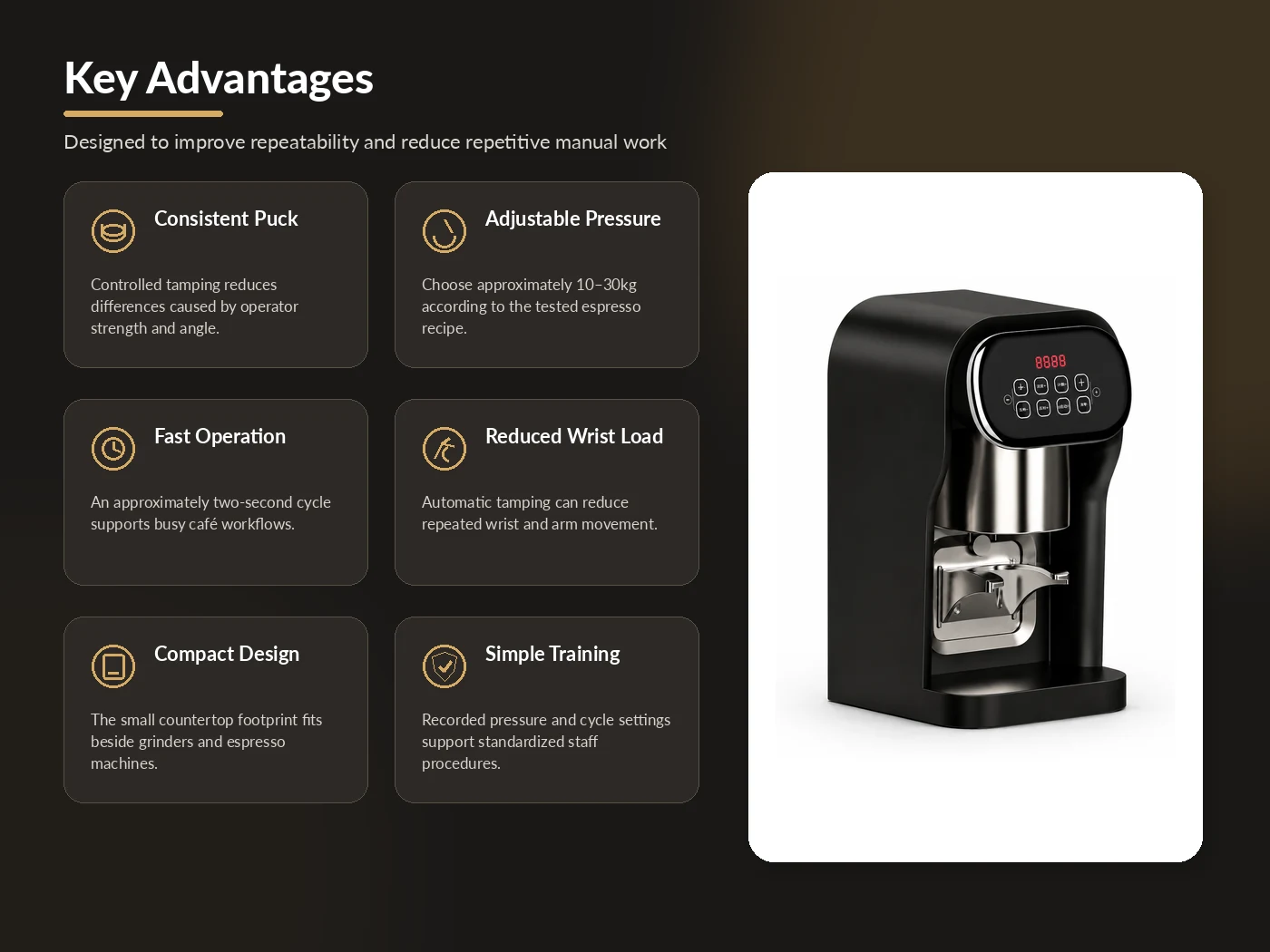

G520N Automatic Espresso Tamper Advantages
10–30kg Adjustable Pressure
Operators can select the required tamping pressure according to the coffee bean, roast profile, grind size, dose, basket and tested espresso recipe. Once a suitable setting has been established, it can be recorded for repeated daily use.
One to Three Tamping Cycles
The adjustable cycle setting gives cafés additional control over the tamping process. Pressure and cycle quantity should be tested together rather than adjusted independently without extraction testing.
Approximately Two-Second Operation
Fast automatic tamping supports a smoother workflow during busy periods. Baristas can grind, distribute and position the portafilter while the machine performs the tamping movement automatically.
Reduced Operator Variation
Manual tamping can vary because of strength, angle and working habits. Controlled automatic pressure helps create a flatter, more repeatable coffee puck across different employees and shifts.
Reduced Repetitive Wrist Movement
A café preparing many espresso-based drinks each day may require hundreds of tamping movements. Automatic tamping can reduce repeated wrist and arm loading during routine service.

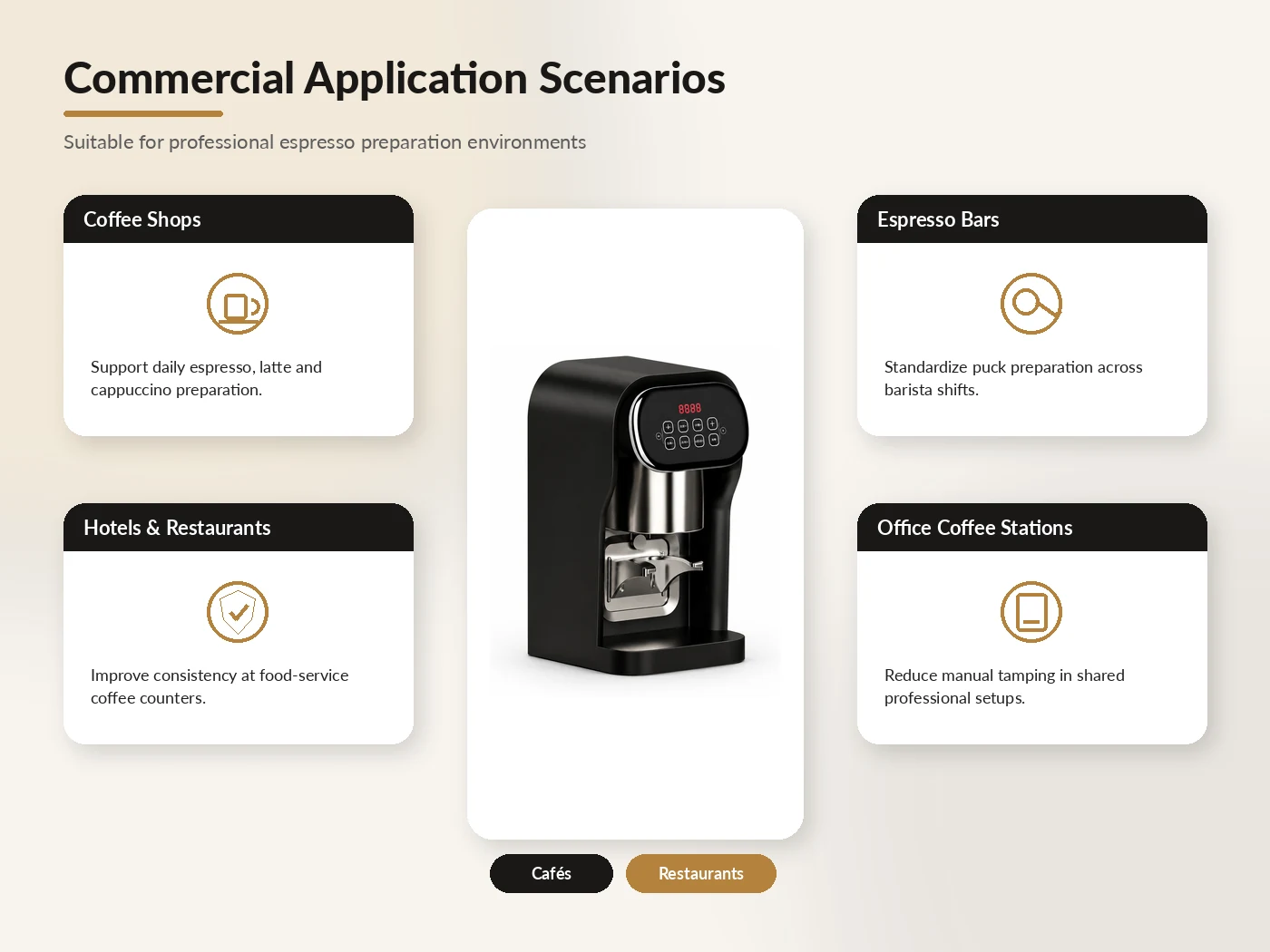

G520N Automatic Espresso Tamper Applications
Coffee shops and cafés: Support daily preparation of espresso, Americano, latte, cappuccino and other espresso-based drinks.
Commercial espresso bars: Help multiple baristas follow the same puck-preparation procedure during different shifts.
Hotels and restaurants: Improve repeatability at food-service coffee counters and breakfast beverage stations.
Office coffee stations: Reduce manual tamping in shared professional espresso setups.
How to Choose and Set Up the Right Tamping Settings
The highest tamping pressure is not automatically the best setting. Pressure should be tested together with dose, grind size, coffee distribution and extraction time. Start with a reasonable setting, evaluate the espresso result and make small adjustments.
- Confirm that the filter basket is compatible with the 58mm tamping base.
- Keep the portafilter level and stable during operation.
- Use a consistent coffee dose and distribute the grounds before tamping.
- Record the tested pressure and cycle settings for each espresso recipe.
- Recheck extraction whenever the coffee bean, grind or dose changes.
- Confirm voltage, plug type and available counter space before ordering.

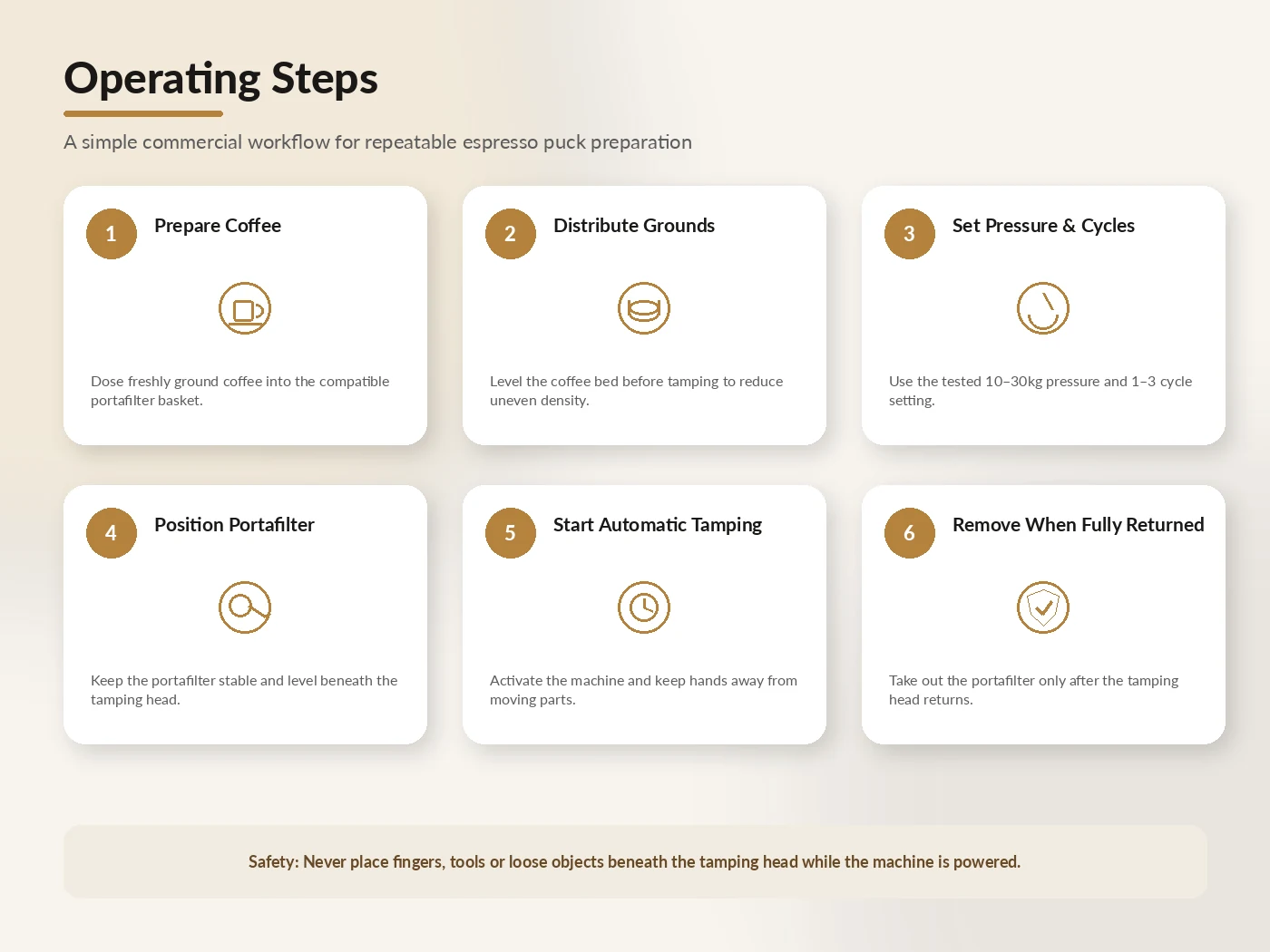

G520N Automatic Espresso Tamper Operation Guide
- Install the machine: Place it on a stable, level and dry countertop near the grinder and espresso machine.
- Connect the power: Verify that the local voltage and electrical connection match the machine requirements.
- Set the recipe: Select the tested tamping pressure and number of cycles.
- Prepare the portafilter: Grind, dose and distribute the coffee grounds evenly.
- Position the portafilter: Place it securely and level beneath the tamping head.
- Start tamping: Activate the machine and keep hands and tools away from moving parts.
- Remove safely: Wait until the tamping head has returned fully before removing the portafilter.

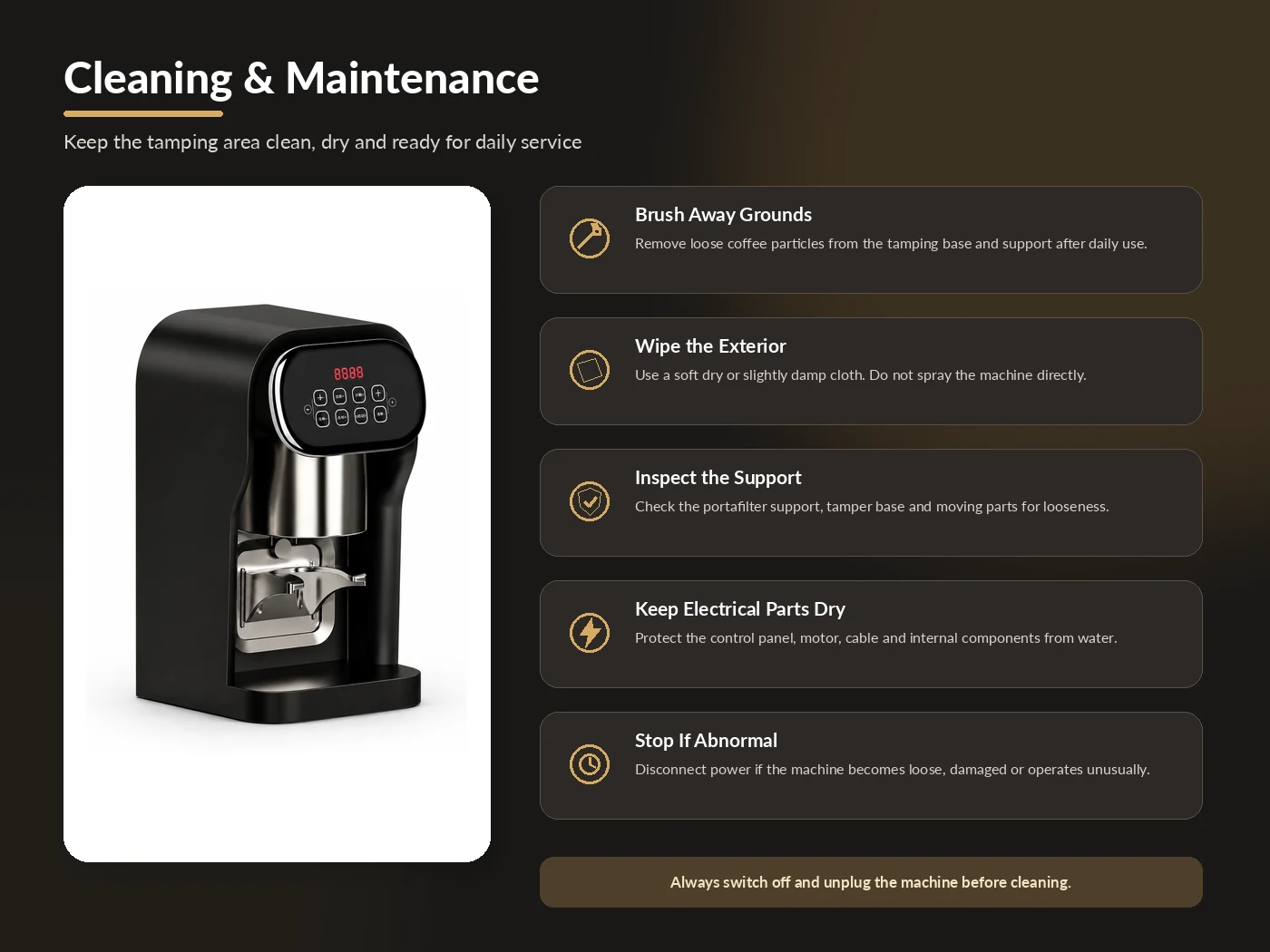

G520N Espresso Tamper Cleaning and Maintenance
Switch off the machine and disconnect the power before cleaning. Remove loose coffee grounds from the tamping base, portafilter support and surrounding work area after daily use.
Wipe the exterior with a soft dry or slightly damp cloth. Do not spray water onto the control panel, tamping mechanism, motor, power connection or internal electrical components.
Regularly inspect the tamping base, portafilter support, controls, power cable and moving parts. Stop using the machine if any component becomes loose, damaged or operates abnormally.
Automatic Tamping vs. Manual Tamping
| Comparison | Automatic Tamper | Manual Tamper |
|---|---|---|
| Pressure Control | Adjustable machine setting | Depends on operator technique |
| Tamping Angle | Controlled vertical movement | May vary between employees |
| Operating Time | Approximately two seconds | Depends on speed and technique |
| Staff Training | Follow recorded settings | Requires repeated technique practice |
| Physical Effort | Reduces repetitive arm movement | Requires manual downward pressure |
G520N Automatic Espresso Tamper FAQs
Is the G520N compatible with every portafilter?
The machine uses a 58mm tamping base. Confirm the internal diameter and design of the filter basket before ordering.
Should I always use 30kg pressure?
No. The correct pressure depends on the bean, dose, grind, basket and extraction recipe. Test the result rather than automatically using the maximum setting.
Does automatic tamping guarantee perfect espresso?
It improves the consistency of the tamping stage, but espresso quality also depends on coffee freshness, grind size, dose, distribution, water temperature, pressure and extraction time.
How often should the machine be cleaned?
Loose grounds should be removed from the tamping area after daily use. The cleaning schedule may need to be increased in high-volume cafés.
What should be confirmed before ordering?
Confirm the voltage, plug type, required color, portafilter compatibility, shipping destination, packaging method and wholesale quantity.
Conclusion
The G520N automatic espresso tamper is a practical option for businesses that want to reduce manual tamping, standardize puck preparation and improve espresso-station efficiency. Its 10–30kg adjustable pressure, 1–3 cycles, 58mm tamping base and compact countertop design are suitable for a wide range of commercial coffee environments.
For more information, visit the G520N automatic espresso tamper product page or explore our commercial coffee equipment collection.
Request Product Details and Wholesale Pricing
Contact Foshan Weiqi Electromechanical Equipment Co., Ltd. for voltage options, packaging details, wholesale quantities, export service and product recommendations.
Note: Product specifications, appearance and configuration may be updated. Please confirm the final machine details before ordering.
