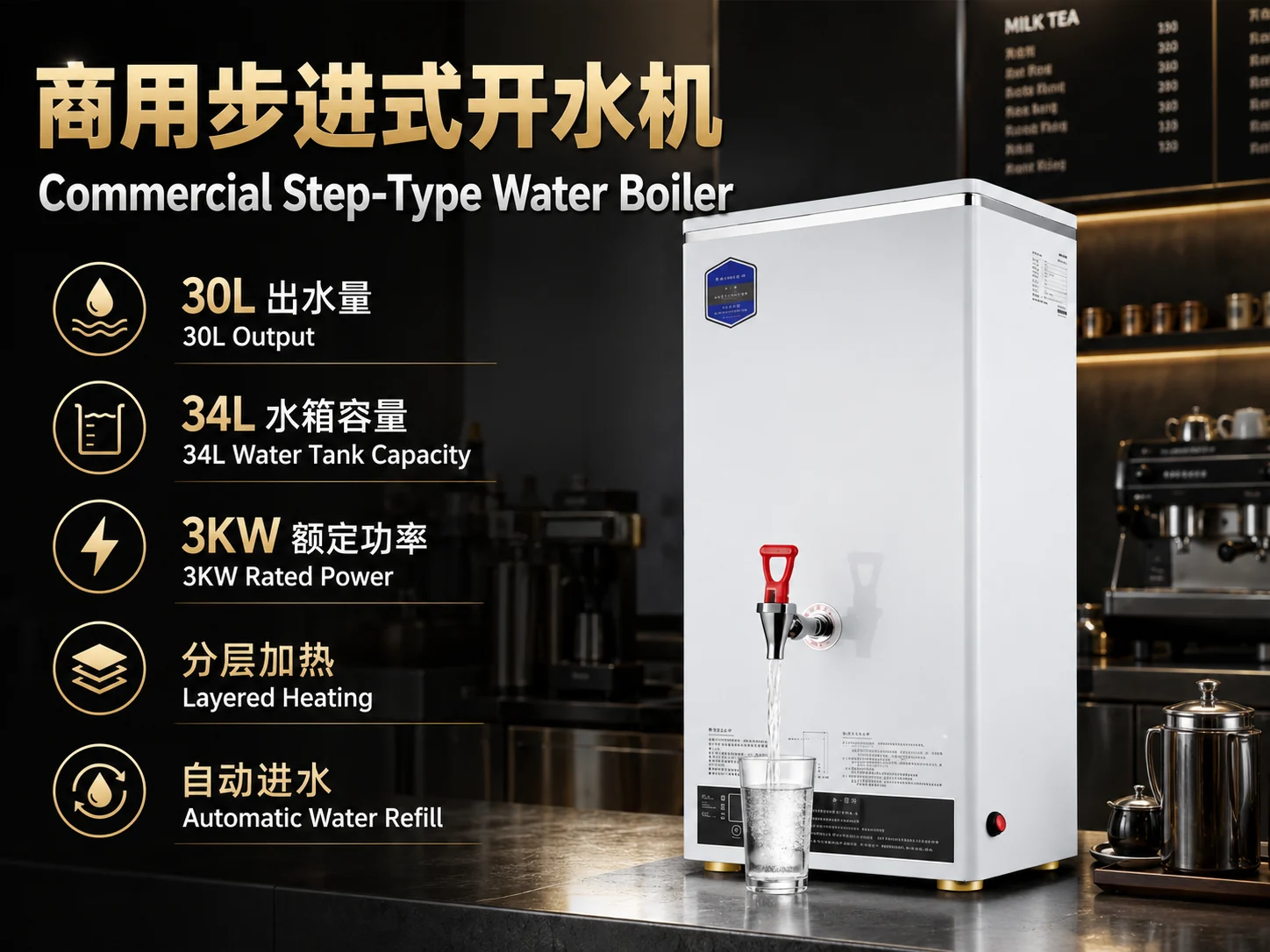

Commercial Step-Type Water Boiler Buying & Usage Guide
A commercial step-type water boiler provides a stable and convenient hot water solution for milk tea shops, coffee shops, restaurants, beverage stores, and commercial kitchens. It combines automatic water refill with layered heating to support brewing, beverage preparation, cup preheating, tool rinsing, and other daily operations while reducing repeated filling and waiting.
View the 30L Commercial Step Water Boiler
What Is a Commercial Step-Type Water Boiler?
A step-type water boiler is a commercial hot water machine that refills and heats water progressively. Instead of adding a large amount of cold water at once and lowering the temperature of the entire tank, the machine refills water according to the water level and heats it layer by layer. This reduces direct mixing between newly added cold water and heated water, helping maintain a more stable dispensing temperature.

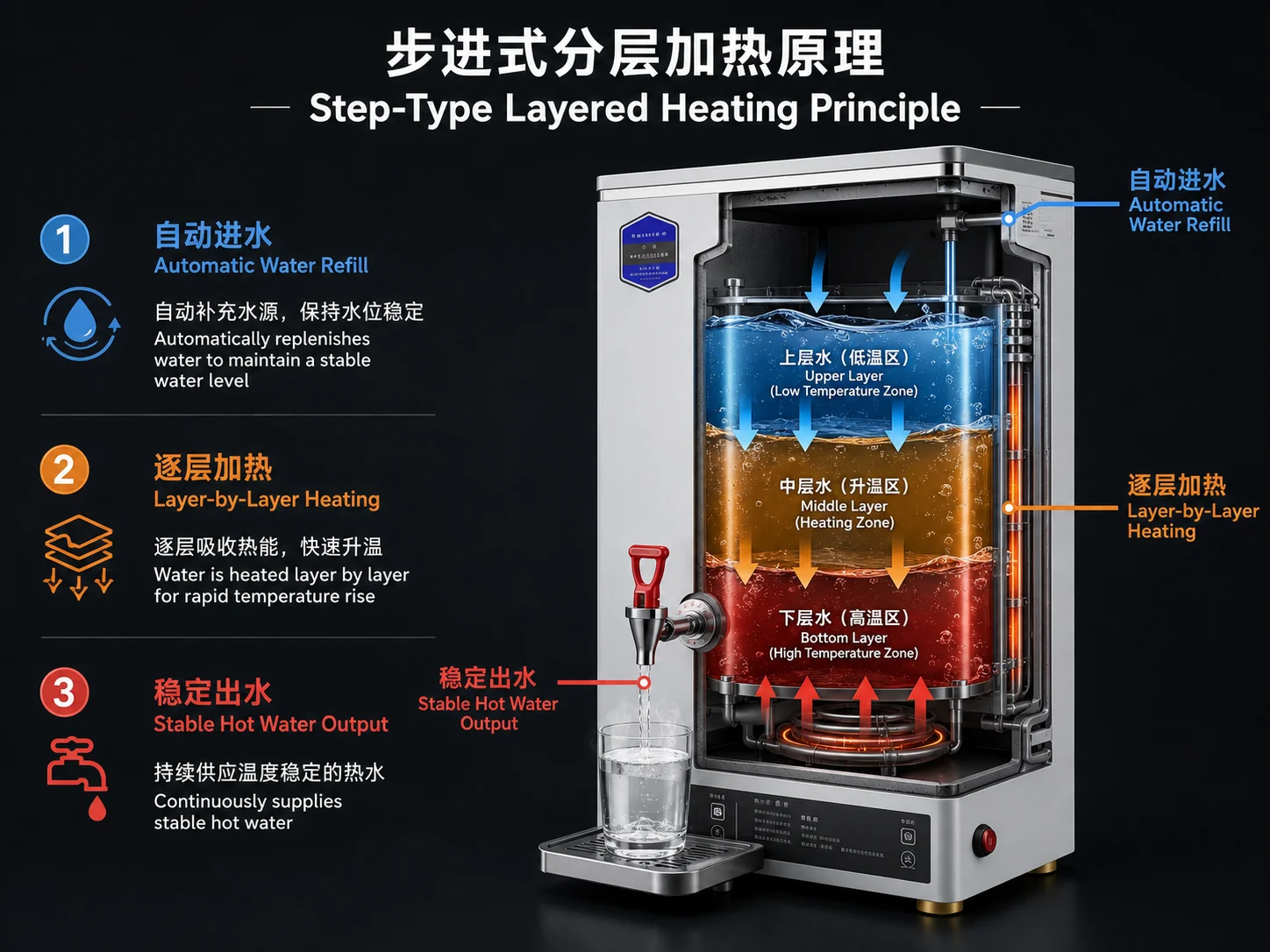

How Does a Commercial Step-Type Water Boiler Work?
Automatic Water Refill
After the machine is connected to the water supply, it automatically refills water according to the internal water level. Staff do not need to carry water or refill the tank manually, reducing repetitive work.
Layer-by-Layer Heating
After entering the tank, water is heated progressively according to the operating program. The machine first heats a usable quantity of water to the selected temperature and then continues the next refill and heating cycle.
Stable Hot Water Supply
During normal operation, hot water can be dispensed through the faucet whenever needed. Layered heating reduces the temperature impact caused by incoming cold water, making the machine suitable for commercial locations with frequent hot water use.

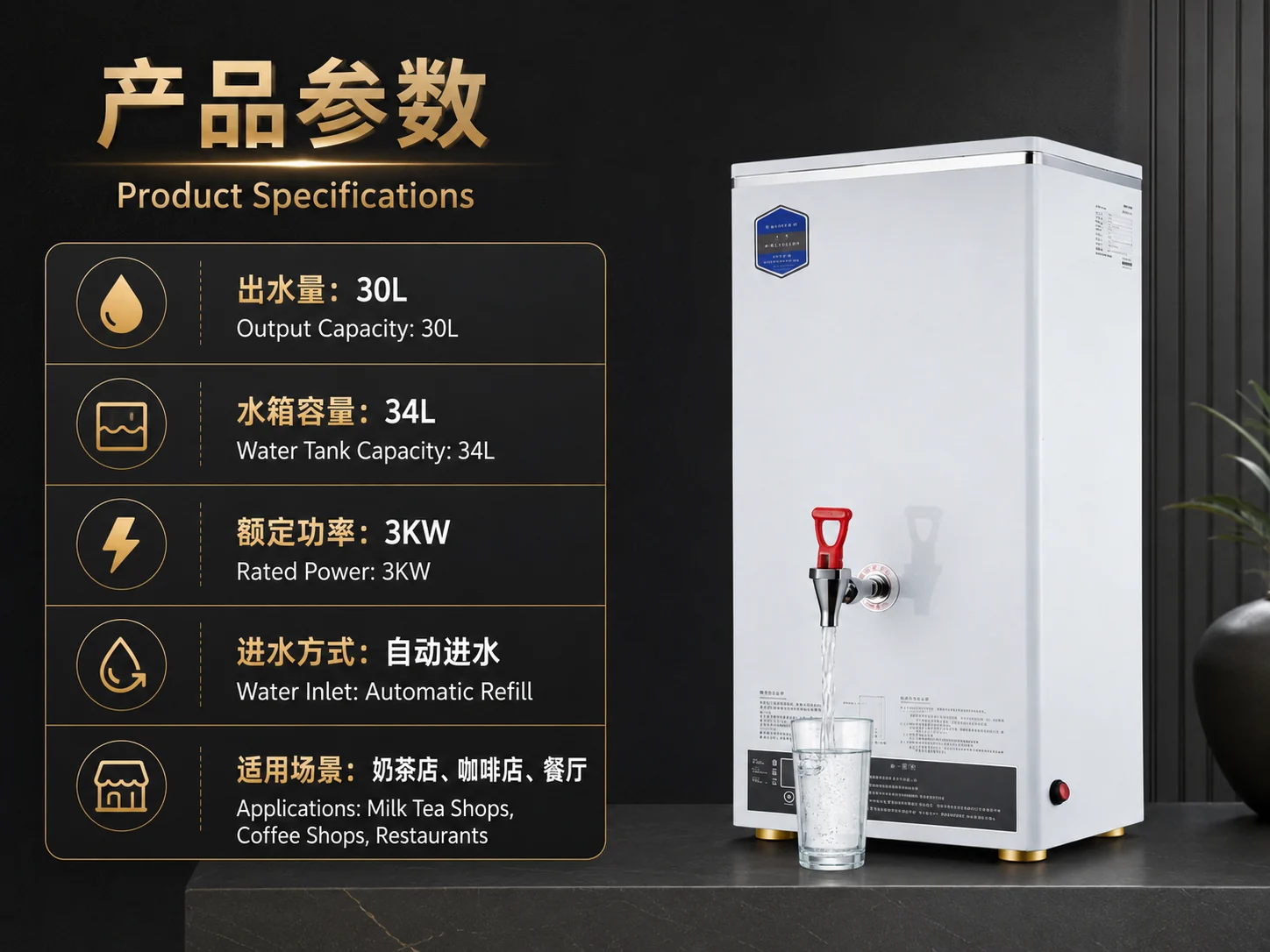

Commercial Step-Type Water Boiler Specifications
| Item | Specification |
|---|---|
| Product Name | Commercial Step-Type Water Boiler |
| Hot Water Output | Approx. 30L |
| Water Tank Capacity | Approx. 34L |
| Rated Power | 3KW |
| Heating Method | Step-Type Layered Heating |
| Water Inlet | Automatic Water Refill |
| Water Outlet | Faucet Dispensing |
| Installation | Countertop Installation |
| Applications | Milk tea shops, coffee shops, restaurants, beverage stores, and commercial kitchens |

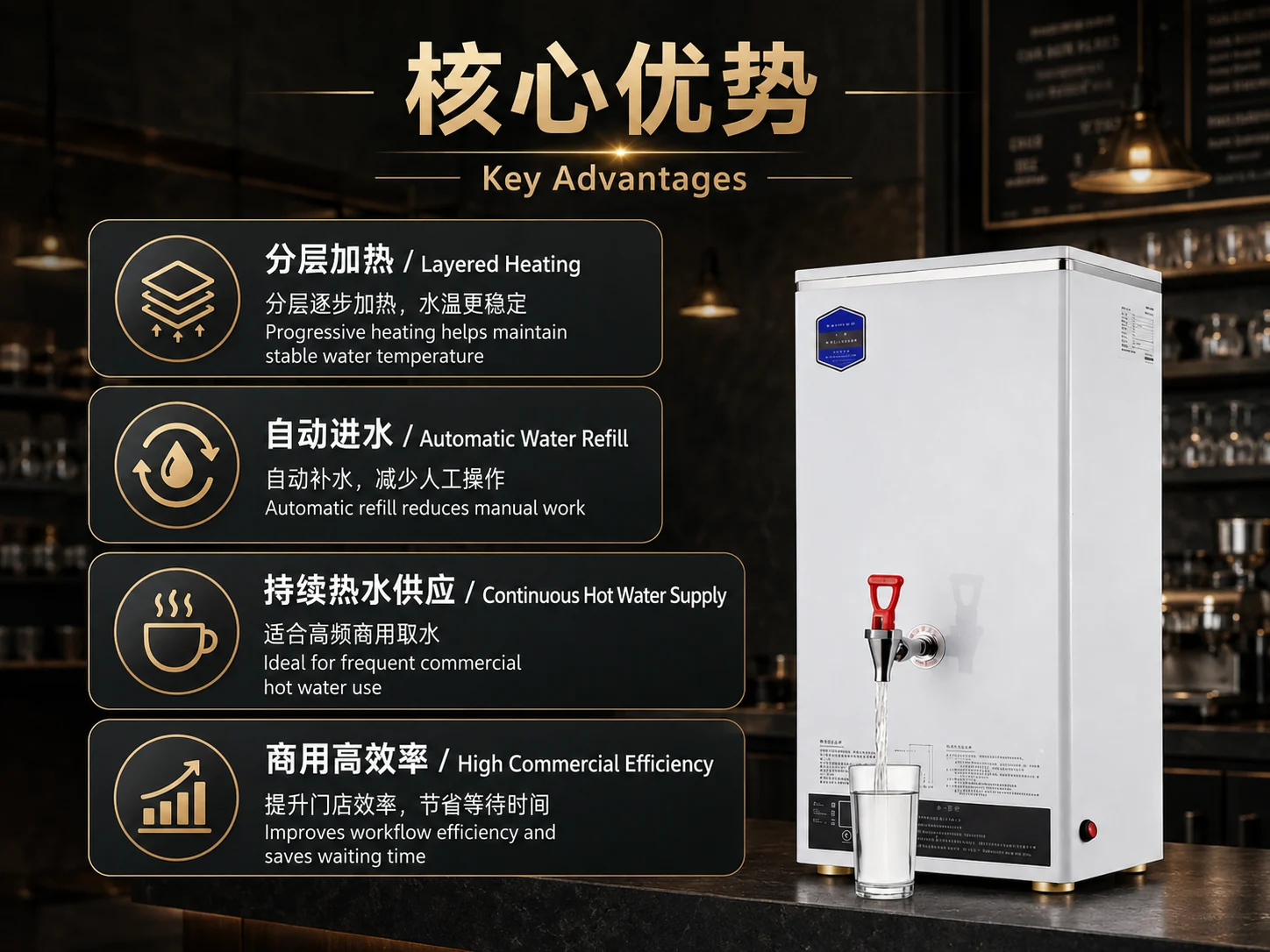

Key Advantages of a Commercial Step-Type Water Boiler
Layered Heating Reduces Hot and Cold Water Mixing
Step-type heating refills and heats water progressively, reducing the temperature drop caused by a large amount of cold water entering the hot water area. This helps maintain more consistent brewing water.
Automatic Refill Reduces Manual Work
Once connected to the water source, the machine refills automatically. Staff can spend less time filling water and more time brewing, mixing drinks, sealing cups, and serving customers.
Centralized Hot Water Improves Store Efficiency
One commercial water boiler can replace several kettles and separate hot water containers, creating a more organized preparation counter and reducing waiting time during peak hours.
34L Water Tank for Daily Commercial Use
The approximately 34L water tank can support various daily hot water needs in small and medium-sized beverage shops, cafés, and food-service locations. Suitability should be evaluated according to the store’s hourly water demand during peak periods.

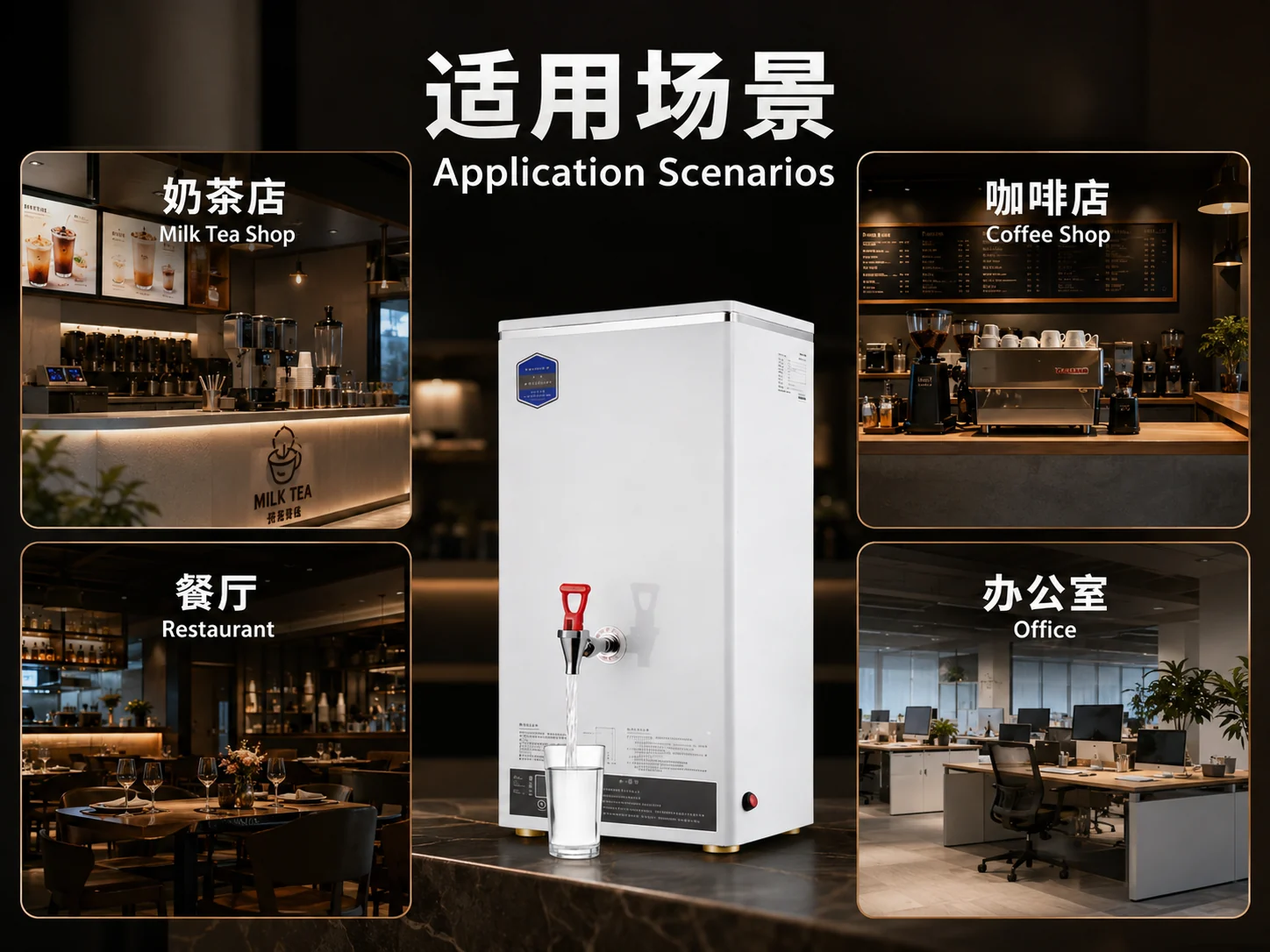

Commercial Step-Type Water Boiler Applications
Milk Tea Shops
It can provide hot water for black tea, green tea, oolong tea, fruit tea bases, and other beverages, helping the shop create a centralized hot water station.
Coffee Shops
It can be used for hot beverages, pour-over preparation, cup preheating, and cleaning certain brewing tools, reducing extra demand on the espresso machine’s hot water system.
Restaurants and Commercial Kitchens
It is suitable for kitchen areas that require hot water for beverages, food preparation, and routine cleaning. Installation should allow enough space for the water connection, power supply, dispensing, and maintenance.
Offices, Schools, and Public Areas
In busy offices, staff break rooms, schools, or training centers, the machine can serve as a centralized source of drinking hot water.
Explore More Commercial Milk Tea Equipment

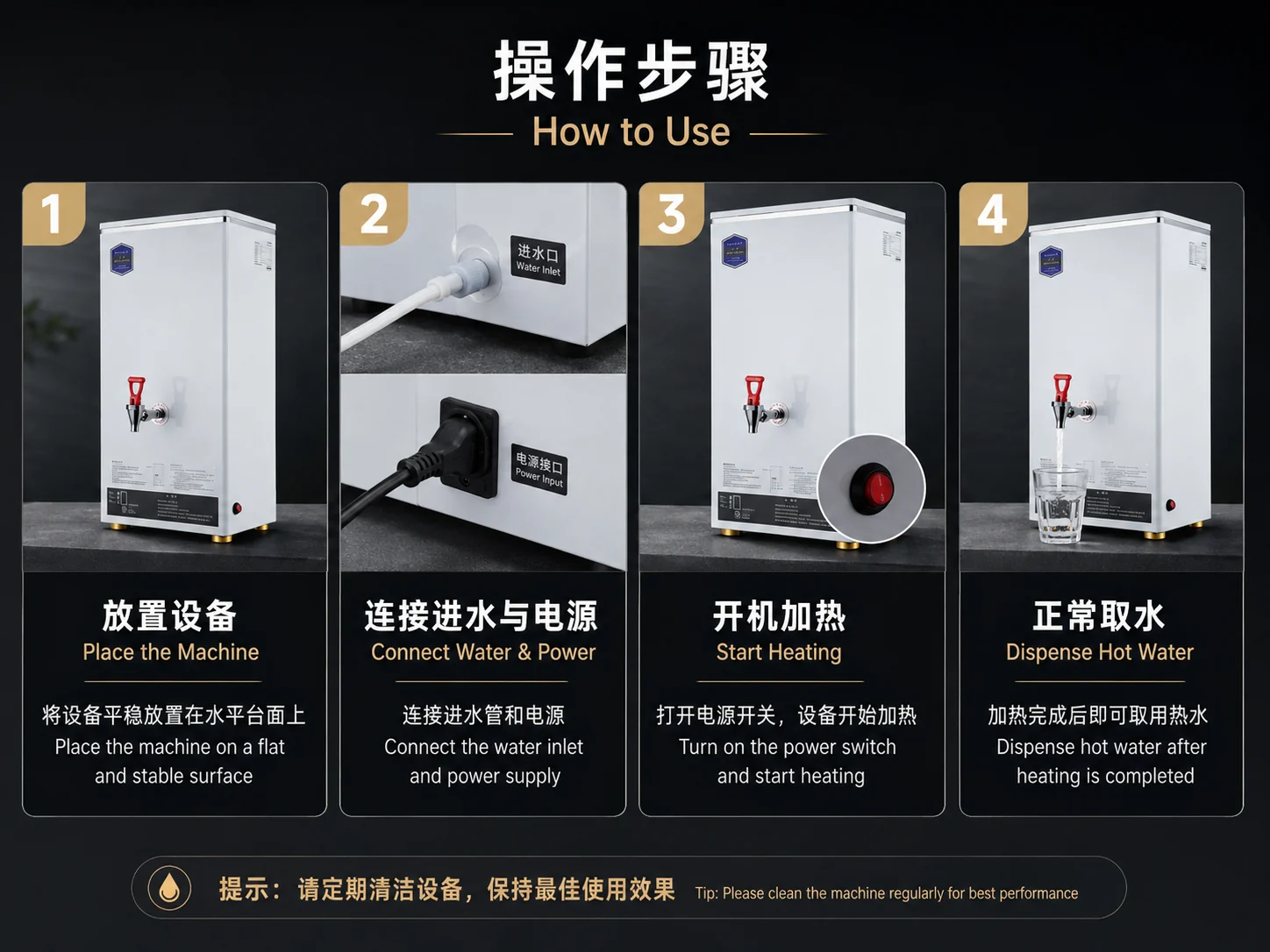

Commercial Step-Type Water Boiler Installation and Operation
Step 1: Position the Machine
Place the machine on a flat, strong, and dry countertop. Keep the unit level and leave enough surrounding space for ventilation, connections, and cleaning.
Step 2: Connect the Water Inlet
Connect a stable and clean water supply according to the inlet requirements. Check that the hose and fittings are secure and free from leakage. In hard-water areas, a suitable filtration or softening system is recommended.
Step 3: Confirm the Electrical Supply
This model has approximately 3KW of rated power. Before installation, confirm that the local voltage, socket, wiring, grounding, and circuit breaker meet the machine’s requirements. High-power equipment should use an appropriate dedicated circuit checked by a qualified electrician.
Step 4: Fill Water Before Heating
Open the water supply and confirm that the machine is filling correctly before connecting the power and turning on the heating switch. Never operate the heater without water.
Step 5: Wait for Initial Heating
During first startup, wait for the initial refill and heating cycle to finish. The required time depends on inlet water temperature, voltage, and selected temperature.
Step 6: Dispense Hot Water Safely
Place a heat-resistant container securely below the faucet before dispensing. Keep hands away from hot water and steam to prevent burns.

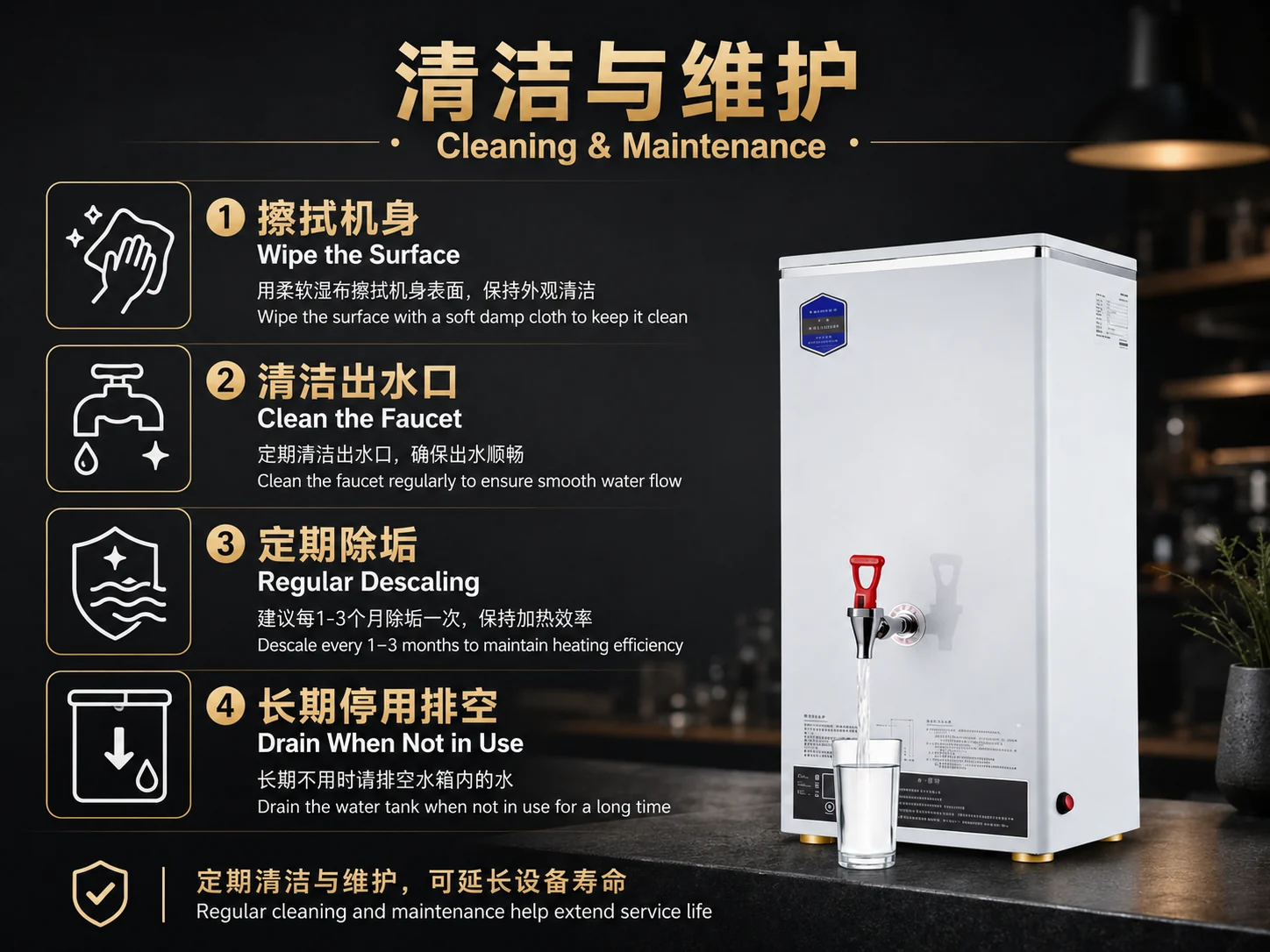

Commercial Step-Type Water Boiler Cleaning and Maintenance
Wipe the Exterior Daily
After disconnecting the power and allowing the machine to cool, wipe the exterior with a soft damp cloth. Do not spray water directly onto the unit or allow water to enter switches, plugs, or electrical components.
Clean the Faucet Regularly
Check the outlet for scale or impurities. If water flow becomes slow or uneven, clean the faucet promptly and confirm that all outlet components are installed correctly.
Descale According to Water Quality
Scale buildup can reduce heating efficiency and equipment service life. The descaling schedule should be based on local water quality, daily operating time, and water consumption. Use a method suitable for food-contact equipment and follow the machine instructions.
Drain the Tank During Long-Term Storage
If the machine will not be used for a long period, turn off the power and water valve, allow the unit to cool, and drain the remaining water. Inspect the power cable, inlet hose, and machine condition before restarting.
What Should You Consider Before Buying?
- Peak-Hour Water Demand: Consider the amount of hot water needed per hour during the busiest service period, not only total daily consumption.
- Voltage and Wiring: Confirm that the machine voltage, power rating, socket, and wiring match local conditions.
- Water Supply and Pressure: The installation location requires a stable water supply and enough maintenance space.
- Local Water Quality: In hard-water areas, add filtration or water softening to reduce scale buildup.
- Support and Spare Parts: Commercial machines require long-term operation, so confirm technical support, spare parts, and wholesale service availability.
Commercial Step-Type Water Boiler FAQs
Is a 30L Step Water Boiler Suitable for a Milk Tea Shop?
For small and medium-sized milk tea or beverage shops, a 30L model can support various brewing and hot beverage needs. The final selection should still consider peak order volume, recipe water consumption, and expected dispensing frequency.
Does the Machine Require Manual Refilling?
An automatic inlet model refills water according to the internal water level after being connected to the water supply, so routine manual refilling is not required.
Why Does Heating Become Slower Over Time?
Common causes include scale buildup, unstable voltage, low inlet water temperature, or a heating system that requires inspection. Clean and descale the machine first. If the issue continues, stop using the unit and arrange professional inspection.
Conclusion
A commercial step-type water boiler combines automatic water refill and layered heating to provide a centralized and stable hot water supply for milk tea shops, coffee shops, restaurants, and commercial kitchens. This model offers approximately 30L hot water output, an approximately 34L tank, and a 3KW heating system. Before purchasing, evaluate water demand, electrical conditions, water quality, installation space, and maintenance requirements.
